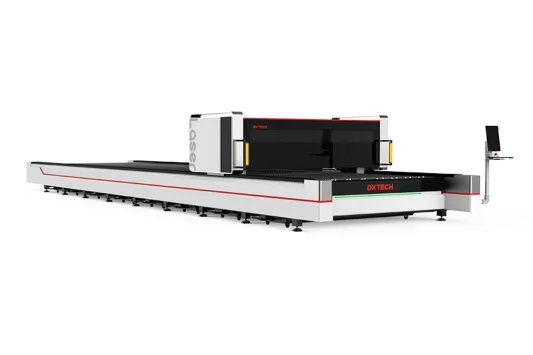

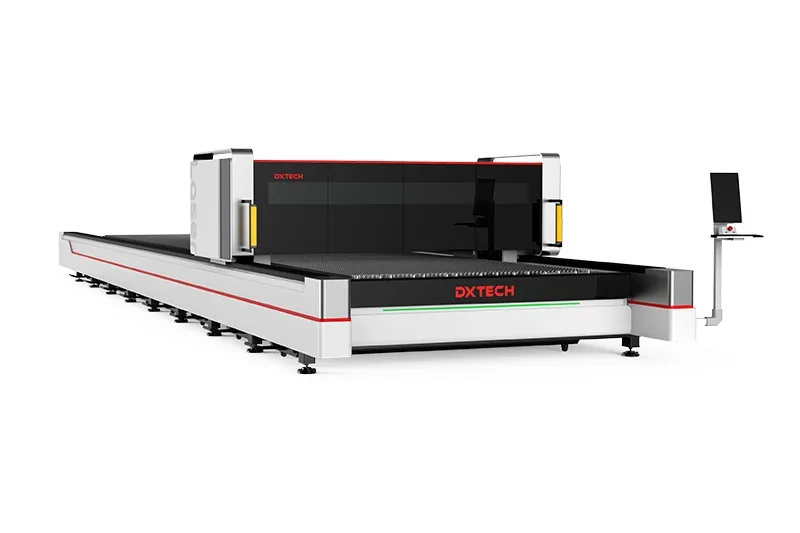

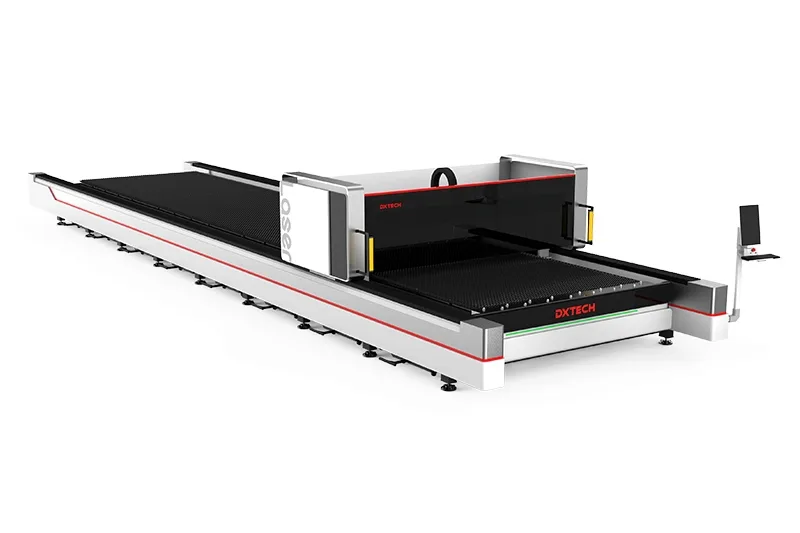

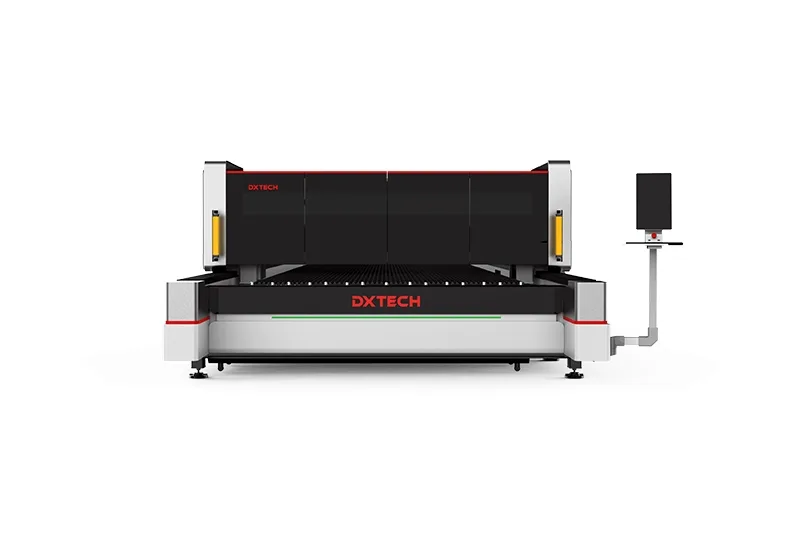

W Series Super Large Scale Heavy Duty Fiber Laser Cutting Machine for SS, CS Sheet in Tabuk, SA
Price:
$25,000.00 /Set
Price Range :
$15,000.00 – $40,000.00
The DXTECH W Series heavy duty large scale fiber laser cutting machines feature a modular design that swiftly expands metal cutting regions, thus minimizing transportation costs. This laser cutter offers a user-friendly and intuitive interface. Customized formats are readily available, with a maximum processing size of 2500mm*12000mm and the ability to cut sheets up to 25mm thick. They meet the stringent requirements of large-scale processing, ensuring efficient and cost-effective solutions for various industries. Custom formats are supported, and inquiries about ss sheet laser cutting machine price are welcomed.
Large scale laser cutting machine mainly deals with stainless steel sheet cutting, brass sheet cutting, aluminum sheet cutting etc.
- Laser Power: 6-20kW Max, Raycus, IPG
- Worktable size:2020*6050mm, 2550*6050mm, 2550*8100mm, 2550*12200mm
- Designed for large workpieces
Laser CNC Machines Video
W series – large scale laser cutting machine can be customized with 6-20kW laser power to cut multiple metal sheets. for example, stainless steel, carbon steel, galvanized steel, aluminum, brass, etc. This video shows 6mm carbon steel sheet laser cutting with a W 2060 large scale laser cutting machine.
large scale laser cutting machine advantages
- Oversized Processing Format
The DXTECH L Series laser cutting machines boast an oversized processing format, with a maximum capacity of 2500mm*12000mm and the ability to cut plates up to 25mm thick. This ensures it meets the rigorous demands of large-format processing, while customized formats are also available to cater to specific requirements. - High-Strength Split Plate Welding Bed
The innovative high-strength split plate welding bed design optimizes the transportation plan, enabling it to fit into standard 20’GP and 40’HQ containers. This significantly reduces transportation costs, often to just one-third of the cost of traditional frame container transportation. - Split Frame Support Table
The split frame support table is engineered to reduce the load on the bed structure, minimizing the impact of material rushing. This ensures the precision and accuracy of the machine, while also improving the loading weight capacity of the table. - Subdivided Fluid Domain Dusting
The advanced smoke exhaust device intelligently senses the laser cutting position, opening precise smoke exhaust ports and closing those in non-cutting areas. This fully enclosed smoke control system maximizes suction, effectively removing smoke and dust to ensure a cleaner and safer working environment. - Replaceable Independent Burn-Proof Sheet Metal
To enhance the durability and longevity of the bed, the replaceable independent burn-proof sheet metal design reduces the erosion caused by slag injection. This not only prolongs the bed’s lifespan but also ensures consistent and reliable cutting performance.

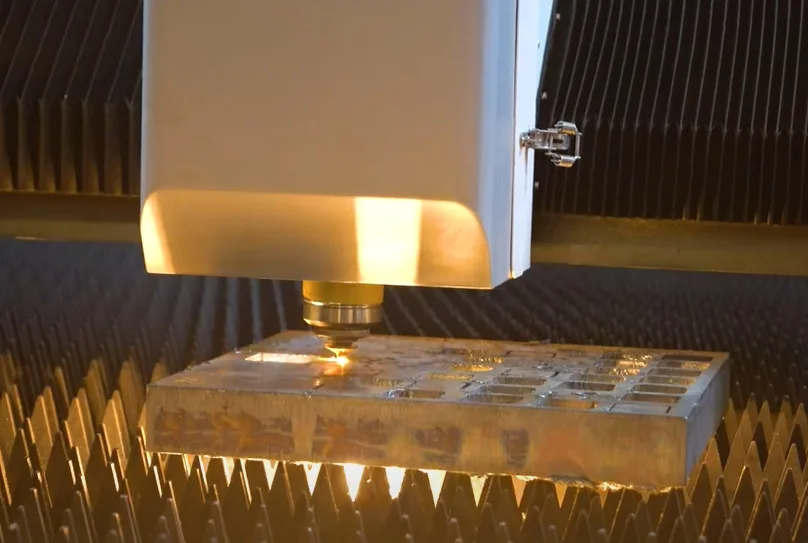

Boci laser cutting head
Efficient and Stable Cutting
The cost-effective intelligent cutting machine provides stable cutting performance, ensuring consistent and reliable results. It is designed to handle 8-20KW high power lasers, making it suitable for a wide range of applications.
Fast Collimation and Focusing
The cutting head features fast collimation and focusing capabilities, significantly reducing the waiting time for focusing adjustments. This results in a more consistent cutting experience and increased processing efficiency.
Staggered blade table
This is a staggered blade designed by our designer, which increases the contact area with the plate and has a maximum load-bearing capacity.
Technical Parameters
| Model | DXTECH-2040W | DXTECH-2060W | DXTECH-2560W | DXTECH-2580W | DXTECH-25120W |
| Working area | 2000mm*4000mm | 2000mm*6000mm | 2500mm*6000mm | 2500mm*8000mm | 2500mm*12000mm |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Laser power | 6kW – 20kW | 6kW – 20kW | 6kW – 20kW | 6kW – 20kW | 6kW – 20kW |
| Laser | Multiple options | Multiple options | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual | Auto/manual | Auto/manual |
| Maximum speed | 140m/min | 140m/min | 140m/min | 140m/min | 140m/min |
global customer visit & feedback
New Zealand
The customer was very satisfied with our professional ability and the cutting quality of the machine and finally purchased our FP series laser cutting machine.
Türkiye
DXTECH technical team traveled to Türkiye to provide customers with personalized machine debugging and support.
Brazil
The Brazilian client visited the DXTECH factory and was impressed by the scale of our manufacturing operations, and ultimately purchased a DXTECH laser welding machine.
Bosnia and Herzegovina
DXTECH technicians arrived at the customer’s factory in B&H to assist in the installation and training of the use of the S series full coverage laser cutting machine.
Global after-sales Service
Real feedback from Ecuadorian customers on DXTECH-ET metal sheet and tube fiber laser metal cutting machine after one year of use
Positive feedback from Greek customers on DXTECH-1530 FP metal sheet fiber laser cutting machine
Moldovan customers visited the DXTECH factory, experienced the laser cutting and bending machine, and expressed their willingness to further cooperate
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
Application
Large scale laser cutting machines are capable of cutting a diverse array of metals, even those with high reflectivity. This includes metals such as carbon steel, stainless steel, aluminum, copper, brass, titanium, nickel, and various alloys. These machines find extensive applications in various industries, including decoration, infrastructure, construction, microelectronics, advertising, kitchen appliances, automobile manufacturing, and other equipment manufacturing.
