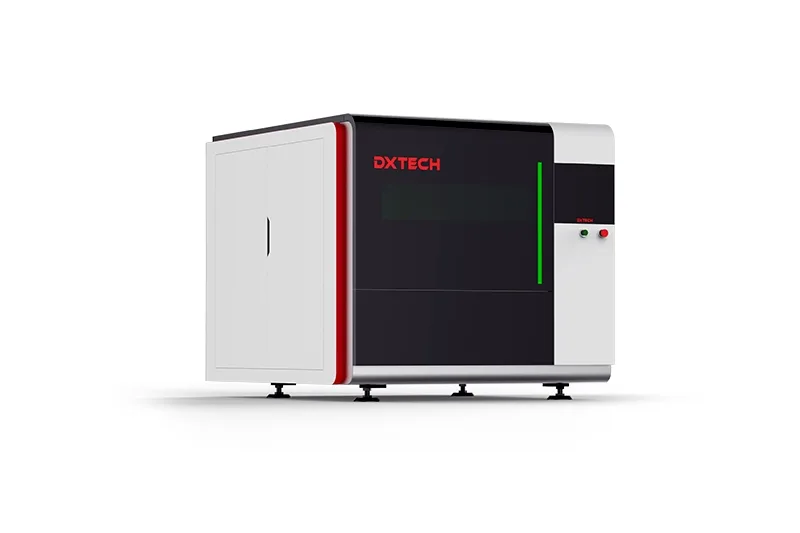

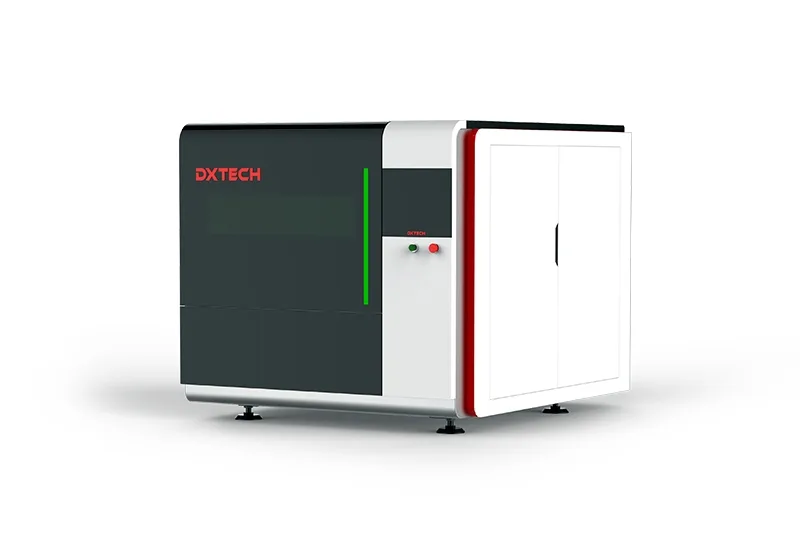

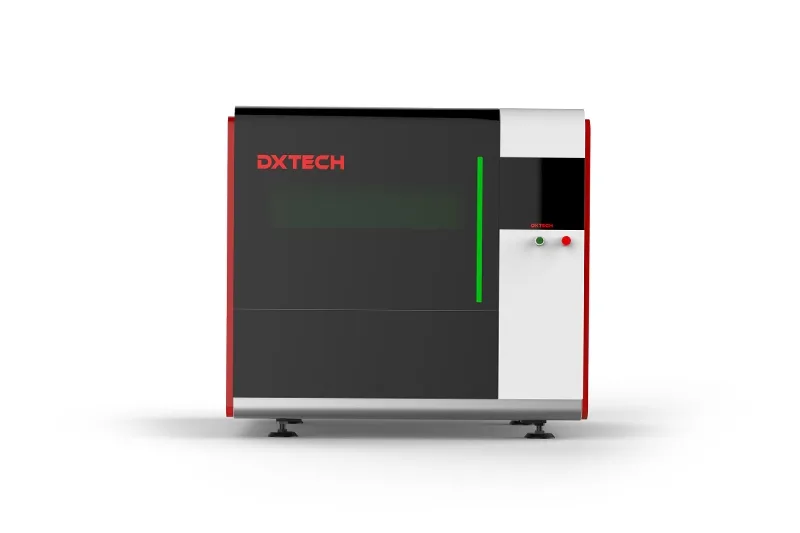

Q Series Small Size High Precision Fiber Laser Cutting Aluminum Machine Suppliers in Taif, JUAYMAH TERMINAL, SA
Price:
$15,000.00 /Set
Price Range :
$15,000.00 – $32,000.00
For users with a limited budget and small-scale metal processing projects, such as metal tool manufacturing, small metal component fabrication, and metal ornament design, the Q series small size high precision fiber laser cutting machine from our suppliers is the ideal choice. This small laser metal cutting machine is perfect for buy metal laser cutting machine enthusiasts who are seeking a high-quality solution for cutting aluminum and other metals with precision and efficiency.
High precision fiber laser cutting machine mainly deals with stainless steel sheet cutting, iron plate cutting, aluminum sheet cutting etc.
- Laser Power: 1-3kW Max, Raycus
- Worktable size: 905mm*905mm,1305mm*905mm, 1305*1305mm
- Best laser cutter for precision laser cutting needs
Laser CNC Machines Video
Q Series- high precision fiber laser cutting machine can be customized with 1-3kW laser power to cut multiple metal sheets, for example, stainless steel, carbon steel, galvanized steel, aluminum, brass, etc. This video shows the precise laser cutting of 5mm carbon steel cutting, 5mm stainless steel cutting, and 5mm aluminum sheet with a Q 1313high precision fiber laser cutting machine.
Technical Parameters
| Model | 9090Q | 1390Q | 1313Q |
| Working area | 905*905mm | 1305*905mm | 1305*1305mm |
| Machine size | 2800mm*1900mm*1980mm | 3100mm*1900mm*1980mm | 3100mm*2330mm*1980mm |
| Machine weight | 1.3t | 1.4t | 1.5t |
| Worktable bearing capacity | 140kg | 210kg | 210kg |
| Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G | 1.2G |
| Laser power | 1-3kw | 1-3kw | 1-3kw |
| Laser | Multiple options | Multiple options | Multiple options |
| Foucsing method | Auto/manual | Multiple options | Multiple options |
| Max Running Speed | 100m/min | 100m/min | 100m/min |
laser cutting ability
High-precision Medium Fiber Laser Cutting Machine advantages
-
Compact Design: With its small size and impeccable mechanical structure, this machine is the perfect fit for users with budgetary and spatial constraints. It’s ideal for home workshops or small businesses.
-
Premium Components: The machine is equipped with a top-notch laser source, a quality motor, a reliable transmission device, and an intelligent control system. This ensures precision cutting while maintaining ease of operation.
-
Safety First: We prioritize the safety of our users. That’s why our high precision fiber laser cutting machines come with a protective cover to shield against dust and smoke during operation.
-
Versatile Applications: This machine can handle a wide range of materials, including carbon steel, stainless steel, galvanized steel, aluminum sheets, aluminum alloy, brass, and more. No matter your project’s needs, our high precision fiber laser cutting machines have you covered.
machine configuration
Fully Enclosed Protective Cover
It is designed with eco-friendliness and safety in mind, featuring a fully enclosed protective cover to enhance user safety. It includes a smoke purification system to prevent environmental pollution and safeguard operator health.
For added stability, the machine’s bed weighs up to 10 tons, ensuring steady operation even at high speeds. This robust design is compliant with both EU and ISO standard certifications, reflecting its reliability and quality.
Aviation Aluminum Beam
1)It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2)It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Intelligent Focusing Laser Head
Cooling is enhanced with both the collimating lens and the focusing lens group acting as cooling components. An additional cooling airflow nozzle is included to safeguard the nozzle and ceramics, extending operational longevity.
The machine features a 35 mm chasing aperture that significantly diminishes stray light interference.
With its autofocus capability, the machine achieves a focusing speed of up to 10m/min and maintains a repeatability precision of approximately 50 microns, all without the need for manual adjustment.
global customer visit & feedback
New Zealand
The customer was very satisfied with our professional ability and the cutting quality of the machine and finally purchased our FP series laser cutting machine.
Türkiye
DXTECH technical team traveled to Türkiye to provide customers with personalized machine debugging and support.
Brazil
The Brazilian client visited the DXTECH factory and was impressed by the scale of our manufacturing operations, and ultimately purchased a DXTECH laser welding machine.
Bosnia and Herzegovina
DXTECH technicians arrived at the customer’s factory in B&H to assist in the installation and training of the use of the S series full coverage laser cutting machine.
Global after-sales Service
Real feedback from Ecuadorian customers on DXTECH-ET metal sheet and tube fiber laser metal cutting machine after one year of use
Positive feedback from Greek customers on DXTECH-1530 FP metal sheet fiber laser cutting machine
Moldovan customers visited the DXTECH factory, experienced the laser cutting and bending machine, and expressed their willingness to further cooperate
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
Application

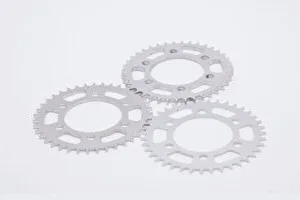

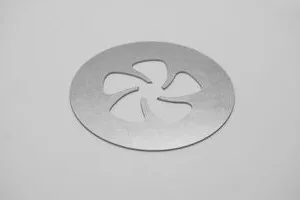

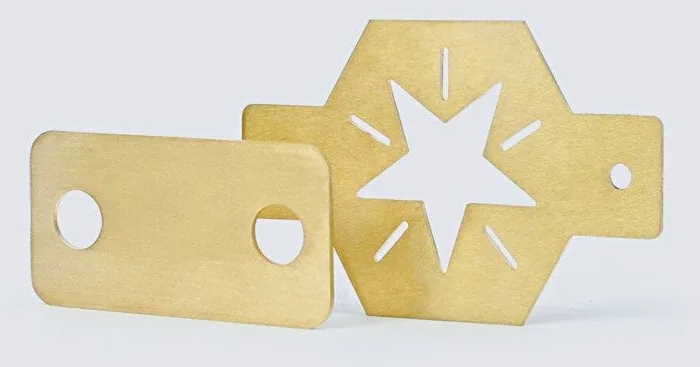

The Q series of high precision fiber laser cutting machines from our esteemed suppliers are renowned for their unparalleled precision and versatility. These machines effortlessly traverse through a diverse array of metals, including reflective materials, with ease. Whether it’s carbon steel, aluminum, or nickel alloys, the Q series can handle a broad spectrum of materials with precision and accuracy. Serving industries spanning from construction to automotive, our suppliers’ Q series high precision fiber laser cutting machines are a crucial component in advanced manufacturing operations.
