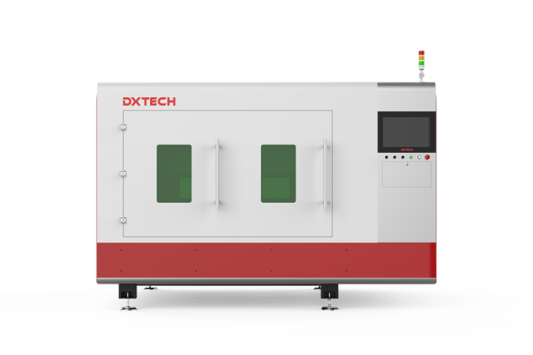

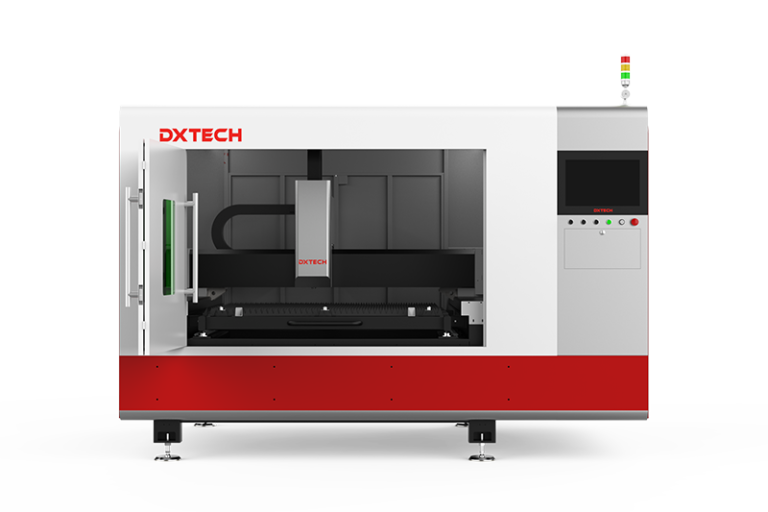

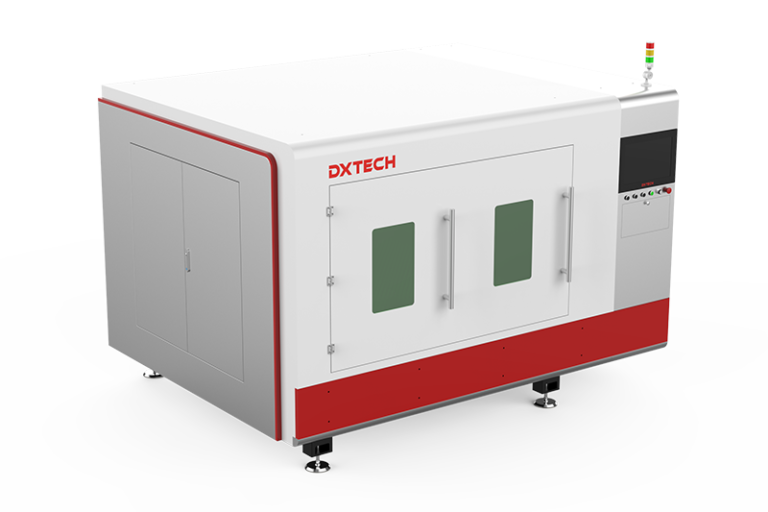

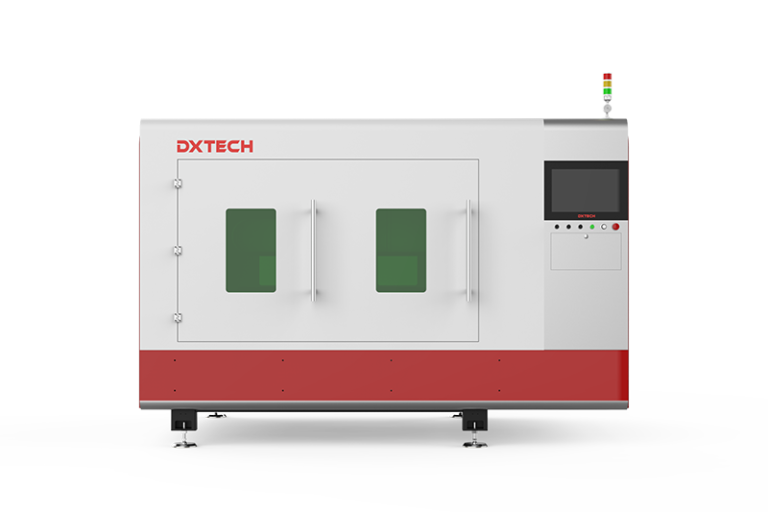

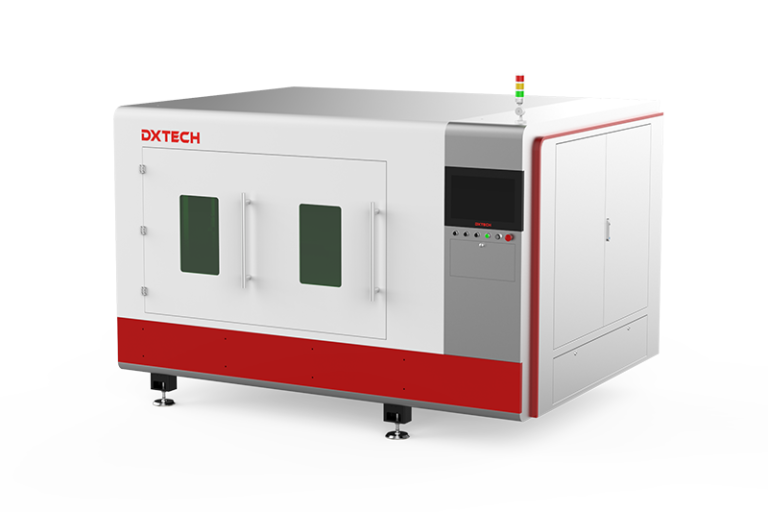

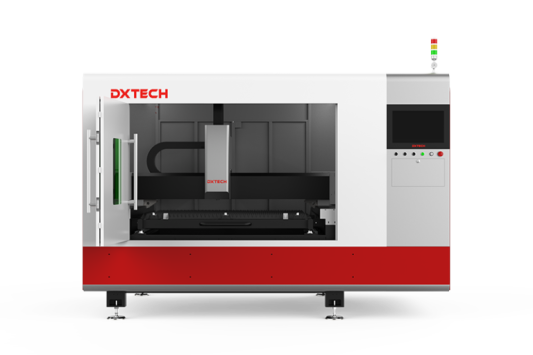

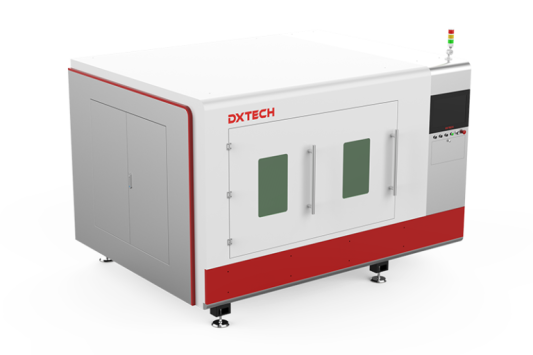

Q Mini High-precision Fiber Laser Cutting Machine for Jewelry Design in Tabuk, Saudi Arabia
Price:
$15,000.00 /Set
Price Range :
$15,000.00 – $32,000.00
This is our Q series small format precision cutting machine for sale. This small fiber laser cutter is the best choice for users with limited budget and small-scale metal processing projects, such as metal tools making, small metal parts making, metal ornament designing, and so on.
Q Mini High-precision Fiber Laser Cutting Machine for Jewelry Design in Tabuk, Saudi Arabia
Comes With?
◆ Water Cooler
◆ Transformer
◆ Stabilizer
◆ Laser Source
◆ 2-year Warranty
◆ Free Installation Training
Laser CNC Machines Video
GOLD
ALUMINUM
COPPER
BRASS
STEEL
TITANIUM
SILVER
IRON
This fiber laser cutting machine can cut most metal materials, if you need to cut non-metal materials, please contact us.
DXTECH has more than 10 international quality certifications, ISO9001, EU CE certification, FDA certification, UL, CSA certification, COC, SGS, etc.
High-precision Small Fiber Laser Cutting Machine advantages
1. This machine is designed for compact workspaces and offers a variety of sizes: 900*900mm, 1300*900mm and 1300*1300mm, accurately matching and exceeding customers’ diverse processing needs. Its compact size is not only convenient for storage, but also greatly reduces transportation costs. The whole machine is shipped, the installation process is simplified, and the operation interface is intuitive and easy to understand, so even first-time users can quickly get started.
2. The machine adopts an advanced fully enclosed structure design and a built-in high-efficiency filtration system to ensure that the smoke generated during the cutting process is effectively captured and filtered, thereby achieving a zero-emission, pollution-free working environment, which perfectly fits the modern environmental protection concept.
3. The innovative single-sided folding door design, this ingenious layout not only optimizes space utilization, but also avoids the problem of operating interface obstruction caused by double-sided door opening, ensuring the smoothness and safety of the operation process.

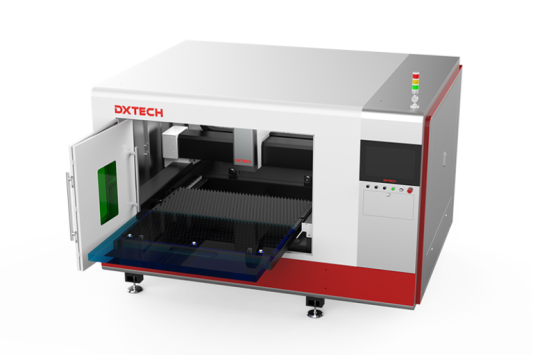

4. The workbench adopts a push-pull design, and both sides are equipped with powerful magnetic devices. This design not only realizes the automatic locking function of the workbench, ensuring the stability and safety during the processing, but also further improves the stability and efficiency of the feeding operation, making each processing more accurate and worry-free.
Q Mini High-precision Fiber Laser Cutting Machine for Jewelry Design in Tabuk, Saudi Arabia
CUSTOMER TESTIMONIALS
Free Installation Training|Overseas Service Avaliable
DXTECH fiber laser cutter
Fully enclosed protective cover
Eco-friendly and safer
Fully enclosed protective cover is designed to improve the safety of use. Equipped with a smoke purification system to avoid environmental pollution and protect the health of operators.
More stable
Compliant with EU and ISO standard certification, the weight of the bed can reach 10 tons, which makes the machine more stable when operating at high speed.
Aviation aluminum beam
1)It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2)It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Raytools laser head
Multi-level perforation
It has multi-level perforation process and ultra-fine cutting functions. Compared with Au3tech laser head, its cutting precision is higher, and the processing effect will be better.
Autofocus
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Technical Parameters
| Machine model | 9090Q | 1390Q | 1313Q |
| Laser power | 1000W-3000W | 1000W-3000W | 1000W-3000W |
| Working area | 905*905mm | 1305*905mm | 1305*1305mm |
| Repeat positioning accuracy | ±0.015mm | ±0.015mm | ±0.015mm |
| Maximum speed | 140M/min | 140M/min | 140M/min |
| Max. acceleration | 1.2G | 1.2G | 1.2G |
Q Mini High-precision Fiber Laser Cutting Machine for Jewelry Design in Tabuk, Saudi Arabia
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
Application
Mini High-precision Fiber Laser Cutting Machine for Jewelry Design in Croatia can cut a wide range of metals, even though highly reflective metals. For instance, carbon steel, stainless steel, aluminum, copper, brass, titanium, nickel, and various alloys. The sheet metal laser cutting machine has extensive applications in decoration, infrastructure, construction, microelectronic, advertising, kitchen appliance, automobile and other equipment manufacturing, and other industries.
Q Mini High-precision Fiber Laser Cutting Machine for Jewelry Design in Tabuk, Saudi Arabia
