Industrial 6000w Automatic CNC Laser Cutting Machine With Warehouse Cost in Jeddah, Saudi Arabia
Price:
$65,000.00 /Set
Price Range :
$65,000.00 – $85,000.00
Introducing the warehouse rack laser cutting machine, a high-efficiency industrial CNC laser cutting solution. Equipped with full automatic functions, this machine specializes in precision cutting of medium to thin metal sheets, encompassing 0.8mm iron plate, 8mm stainless steel plate, and 6mm carbon steel sheet. Its versatility extends across multiple industries, including engineering machinery, automotive, mold making, electrical equipment, elevators, hardware, and sheet metal processing. Powered by a 1-6kw fiber laser, this automatic laser cutting machine significantly reduces labor and time requirements, optimizing production efficiency.
Warehouse rack laser cutting machine mainly deals with stainless steel sheet cutting, iron plate cutting, aluminum sheet cutting etc.
- Laser Power: 1-3kW Max, Raycus, IPG
- Worktable size:1515*3030mm, 1515*4040mm, 2020*4040mm
- Best for metal sheet cutting tasks.
Fully Automatic Loading and Unloading System for Metal advantages
1. Intelligent Thickness Sorting:
The system accurately measures the metal sheet thickness and sorts them onto different pallets, ensuring precise classification based on thickness.
2. Environmentally Friendly Design:
The warehouse rack laser cutting machine improves workshop utilization, making it a preferred choice for environmentally conscious facilities.
3. Cost-Effective Automation:
By automatically loading sheet metal onto exchange platforms and stacking finished products on pallets, the system minimizes manual labor, reducing labor costs.
4. Enhanced Production Efficiency:
The ability to service multiple cutting machines simultaneously maximizes production efficiency. This automatic loading and unloading system minimizes non-productive time and reduces energy consumption.
5. High-Precision Handling:
One of the most sought-after features, the automatic loading and unloading system ensures scratch-free handling of sheet metals through digital operation and safe manipulation, resulting in high-quality finished products.
Technical Parameters
| Model | DXTECH-1530SL | DXTECH-1540SL | DXTECH-2040SL |
| Working area (mm) | 1500*3000mm | 1500*4000mm | 2000*4000mm |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Maximum speed | 100M/min | 100M/min | 100M/min |
| Max. acceleration | 1.2G | 1.2G | 1.2G |
| Laser power | 1kw – 3kw | 1kw – 3kw | 1kw – 3kw |
| Laser | Multiple options | Multiple options | Multiple options |
| X-axis motor power | 850W | 850W | 850W |
| Y-axis motor power | 1300W*2 | 1300W*2 | 1300W*2 |
| Z-axis motor power | 400W | 400W | 400W |
laser cutting ability

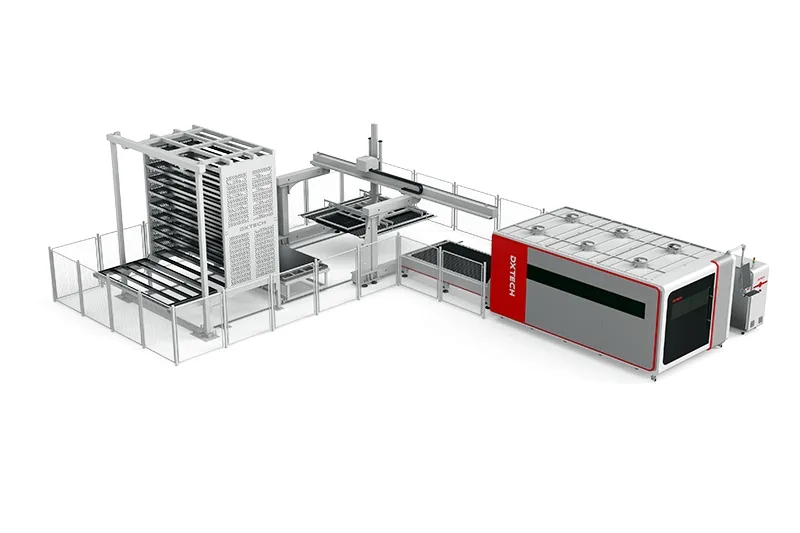

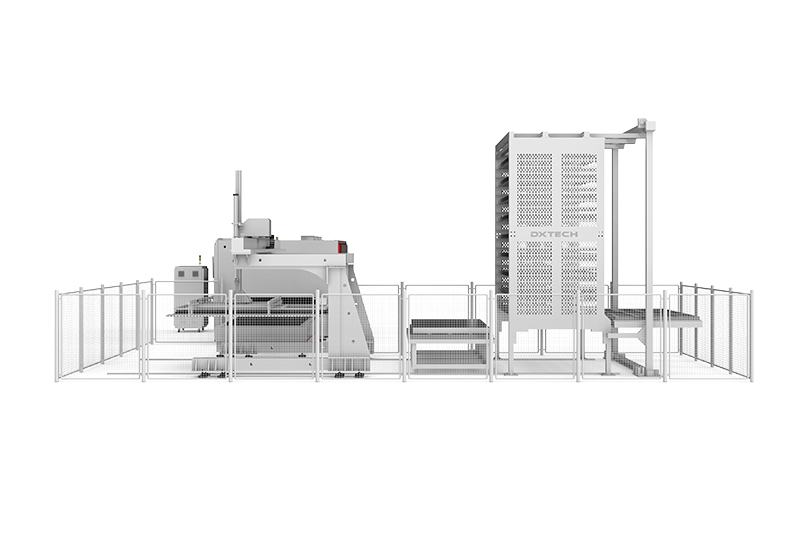

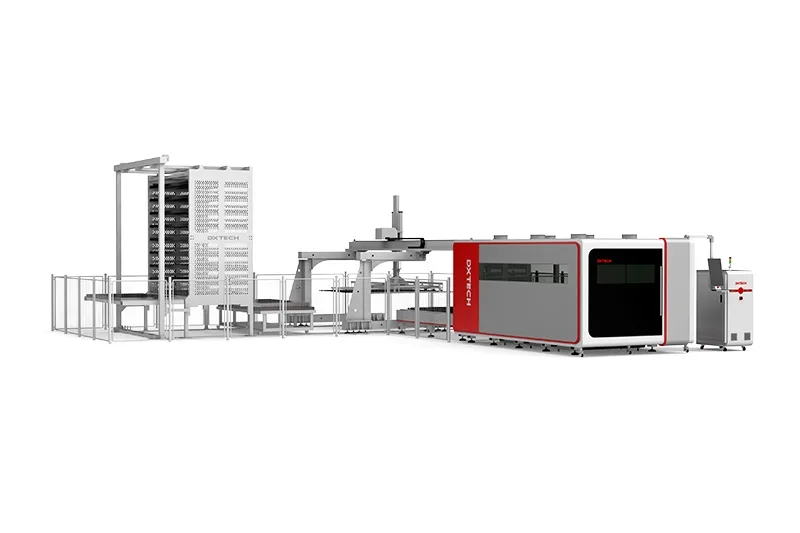

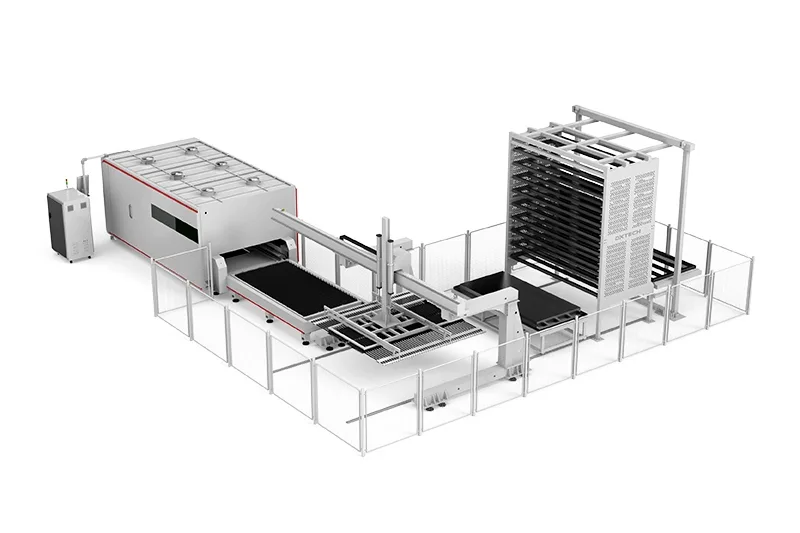

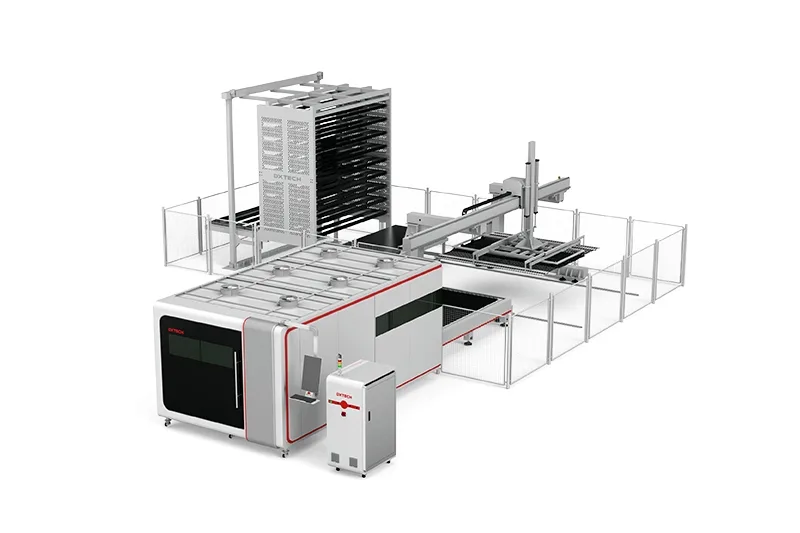

Automatic loading and unloading system and warehousing system
1) The whole line can realize fully automatic and intelligent operation to ensure that the production process is unattended.
2) Equipped with raw material trays and finished material trays, which can realize automatic transfer back to the warehouse and meet the needs of small, medium, large, and varieties of plates.
Fully enclosed protective cover
Eco-friendly and safer
Fully enclosed protective cover is designed to improve the safety of use. Equipped with a smoke purification system to avoid environmental pollution and protect the health of operators.
More stable
Compliant with EU and ISO standard certification, the weight of the bed can reach 10 tons, which makes the machine more stable when operating at high speed.
Aviation aluminum beam
1)It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2)It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Global after-sales Service
Real feedback from Ecuadorian customers on DXTECH-ET metal sheet and tube fiber laser metal cutting machine after one year of use
Positive feedback from Greek customers on DXTECH-1530 FP metal sheet fiber laser cutting machine
Moldovan customers visited the DXTECH factory, experienced the laser cutting and bending machine, and expressed their willingness to further cooperate
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
Application
The warehouse rack laser cutting machine, equipped with a protective cover, exhibits exceptional capabilities in cutting a broad spectrum of metals, including highly reflective ones like carbon steel, stainless steel, aluminum, copper, brass, titanium, nickel, and various alloys. Due to its versatility, this laser cutter for sheet metal finds widespread usage in various industries, encompassing decoration, infrastructure, construction, microelectronics, advertising, kitchen appliance manufacturing, automotive equipment, and numerous others.
