FLT Series Single Platform Sheet and Tube Fiber Laser Cutting Machine Cost in Turkey
Price:
$25,000.00 /Set
Price Range :
$30,000.00 – $71,000.00

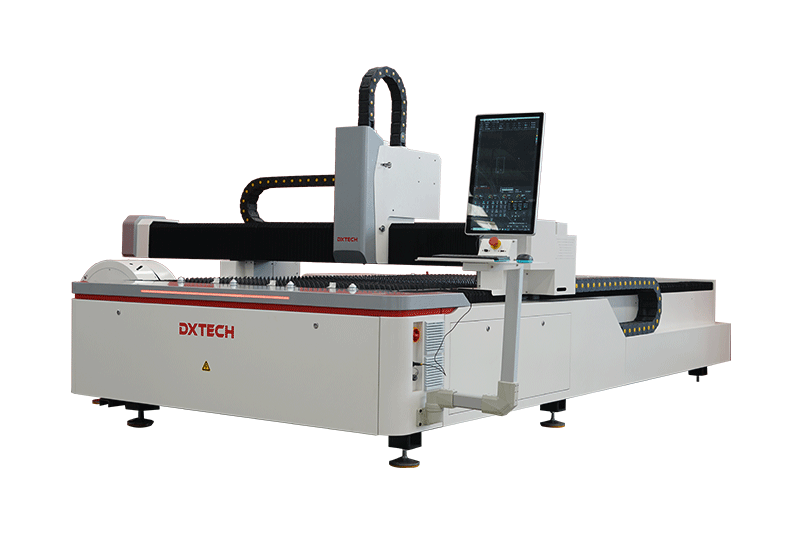

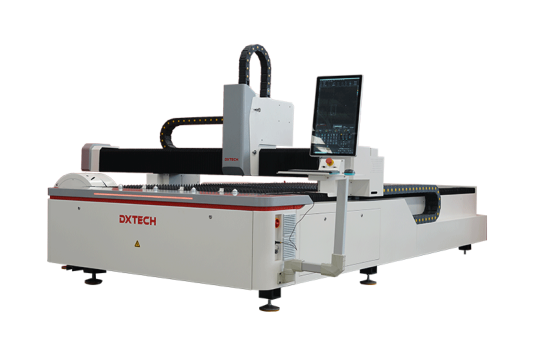

DXTECH FLT series single platform sheet and tube fiber laser cutting machine is a dual-purpose laser cutting machine for sheets and tubes based on the FL series with a tube cutting system. It can switch between sheets and tubes at any time. The operation is simple and flexible, and one machine can be used for multiple purposes, saving production costs.
- Laser power: 1 kW – 2 kW
- Workbench size: 1310 mm × 2520 mm, 1515 mm × 3030 mm
- The open cutting platform can be loaded from three directions, flexible and unlimited
- Small size, small footprint, electrical cabinet is located inside the machine, saving space
Laser CNC Machines Video
Cutting capacity demonstration: The video shows the FLT series single platform plate and tube fiber laser cutting machine accurately cutting 1mm stainless steel, 6mm carbon steel, 20x20mm square tube, 75mm round tube, and 38x38mm square tube.
Features

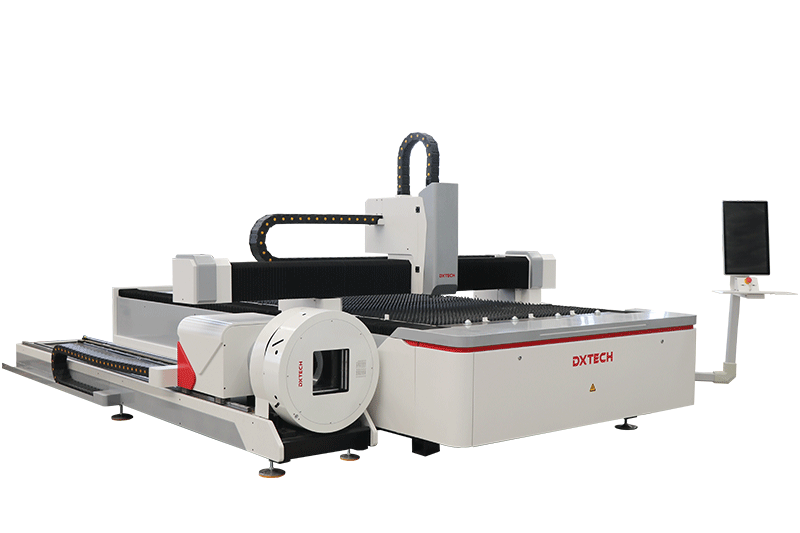

1. Sheet and tube integrated design
This machine not only meets the needs of plate cutting but also can process round tubes and special-shaped tubes (such as square steel, flat iron, U steel, and square tube), with high-cost performance.
2. Widely applicable pipe types
Different types of clamping claws can be selected according to needs to achieve cutting processing of different profiles, such as angle steel, U steel, and H steel. In addition, the dedicated pipe-cutting workbench helps to handle long pipes and unloading.
3. Internal electric control cabinet
The electrical cabinet is equipped with air conditioning and automatic constant temperature to prevent damage to electrical components due to high temperatures in summer.

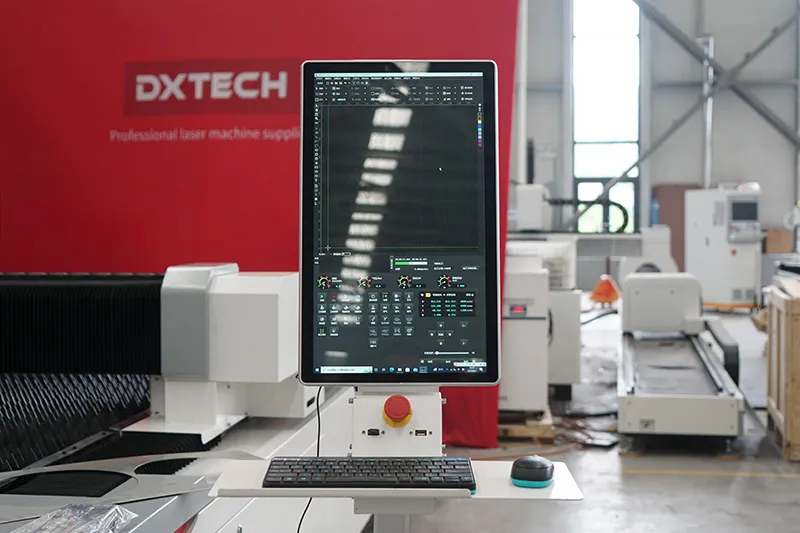

4. Advanced operating system
The system operation panel is movable and does not need to be close to the machine for operation, so as to better avoid laser radiation, cutting sparks and dust, and prevent cutting accidents.
Technical Parameters
| Model | DXTECH-1325FLT | DXTECH-1530FLT |
| Machine size | 4470*2035*1950mm | 4735*2251*1950mm |
| Working area | 1310*2520mm | 1515*3030mm |
| Positioning accuracy | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G |
| Laser power | 1kW – 2kW | 1kW – 2kW |
| Laser | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual |
| Max. running speed | 140m/min | 140m/min |
FLT Series Single Platform Sheet and Tube Fiber Laser Cutting Machine Cost in Turkey
laser cutting ability
Technical Advantages

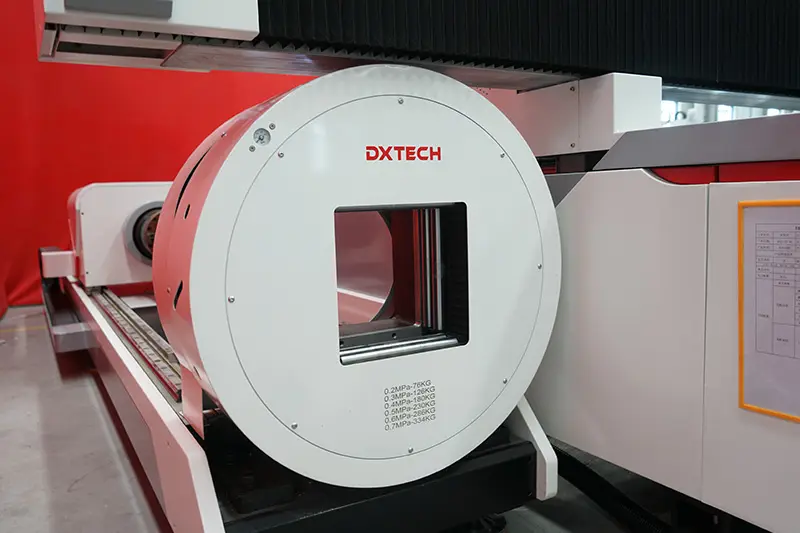

Dual-action automatic pneumatic chuck
1) Pneumatic chuck clamping. One-button operation, automatic centering, three times faster than electric chucks, reducing loading and unloading waiting time.
2)Pneumatic operation, strong and constant clamping force, heavy tubes do not loosen or slip, ensuring cutting precision.
3)Special support to prevent tube dropping and deformation, improving cutting precision, and extending chuck life.

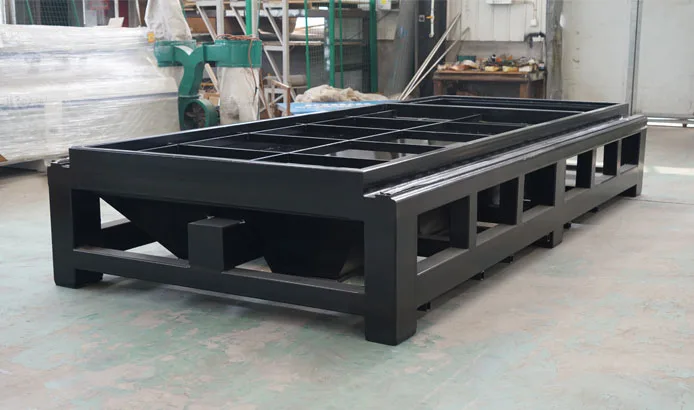

Thick-walled carbon steel tube welding bed
1)Adopting a high-quality carbon steel welding bed, is more stable and durable.
2)The high-strength machine tool adopts a 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation Aluminum Beam
1. Material property advantages
corrosion resistance, light weight, high rigidity, etc., ensuring high-speed movement during laser processing.
2. Dynamic performance advantages
anti-twisting, anti-overturning, anti-deformation, etc., thus ensuring higher cutting accuracy.

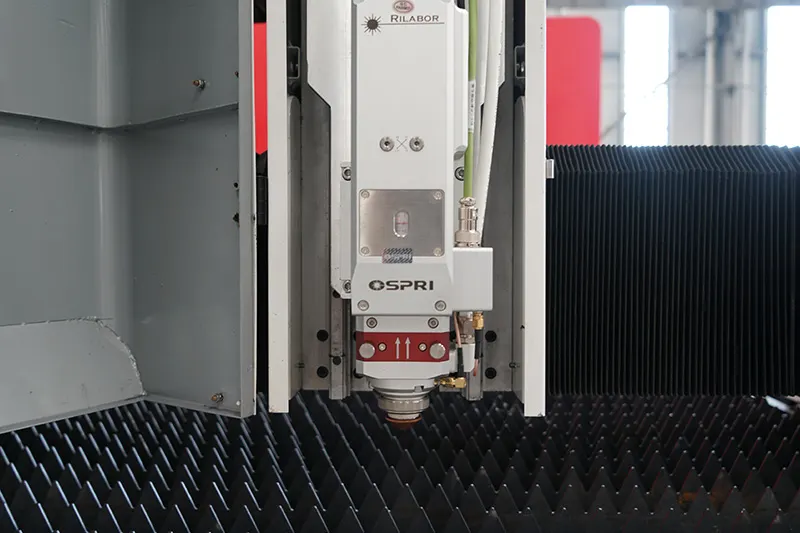

Intelligent Focusing Laser Head
Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
global customer visit & feedback
New Zealand
The customer was very satisfied with our professional ability and the cutting quality of the machine and finally purchased our FP series laser cutting machine.
Türkiye
DXTECH technical team traveled to Türkiye to provide customers with personalized machine debugging and support.
Brazil
The Brazilian client visited the DXTECH factory and was impressed by the scale of our manufacturing operations, and ultimately purchased a DXTECH laser welding machine.
Bosnia and Herzegovina
DXTECH technicians arrived at the customer’s factory in B&H to assist in the installation and training of the use of the S series full coverage laser cutting machine.
Global after-sales Service
Real feedback from Ecuadorian customers on DXTECH-ET metal sheet and tube fiber laser metal cutting machine after one year of use
Positive feedback from Greek customers on DXTECH-1530 FP metal sheet fiber laser cutting machine
Moldovan customers visited the DXTECH factory, experienced the laser cutting and bending machine, and expressed their willingness to further cooperate
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
Application
The FLT series single-platform sheet and tube fiber laser cutting machine combines two functions into one, which greatly saves costs, improves work efficiency and saves space. It is suitable for high-quality plates such as stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, copper, and different types of pipes such as square steel, flat iron, U-shaped steel, square tube, etc.
