EP 6KW 15mm Stainless Steel Fiber Laser Cutting Machine for Stainless Steel Furniture Factory in Istanbul, Turkey
Price:
$20,000.00 /Set
Price Range :
$20,000.00 – $60,000.00

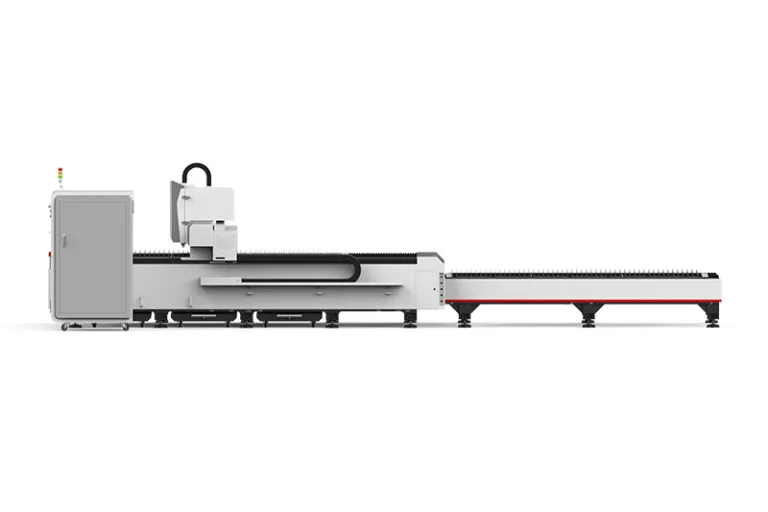

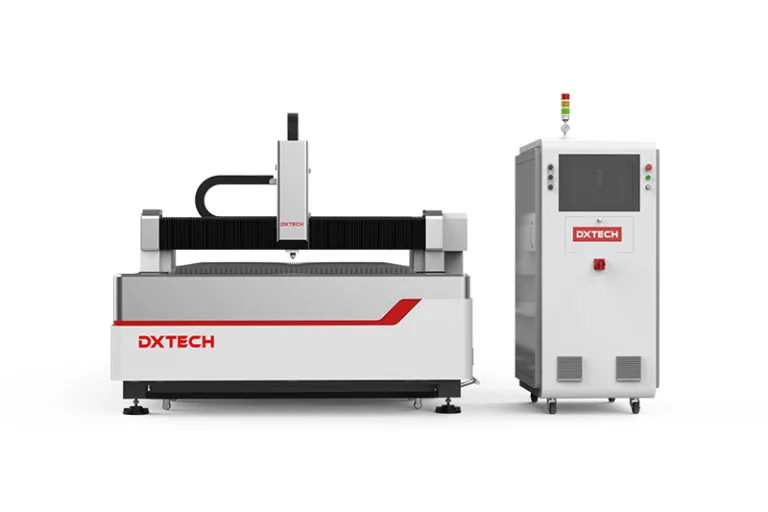

EP series metal laser cutting machine is 6KW 15mm stainless steel laser cutting machine for furniture factory, which can automatically load and unload plates, saving more time and manpower. And the double working platform greatly reduces the loading and unloading time, and improves the processing efficiency and productivity.
- Platform size: 51″x98″ to 98″x236″ (+ Custom sizes)
- Power: 1KW to 6KW
- Certification: CE, FDA, ISO9001, UL, etc.
- 15s exchange platform
EP 6KW 15mm Stainless Steel Fiber Laser Cutting Machine for Stainless Steel Furniture Factory in Istanbul, Turkey
Laser CNC Machines Video
GOLD
ALUMINUM
COPPER
BRASS
STEEL
TITANIUM
SILVER
IRON

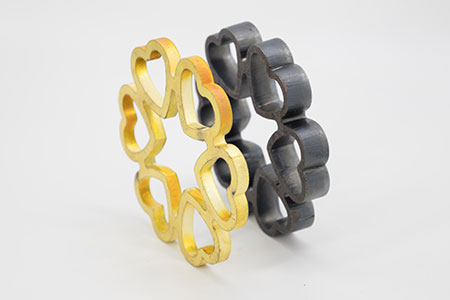

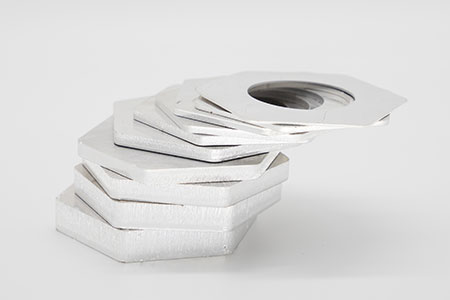

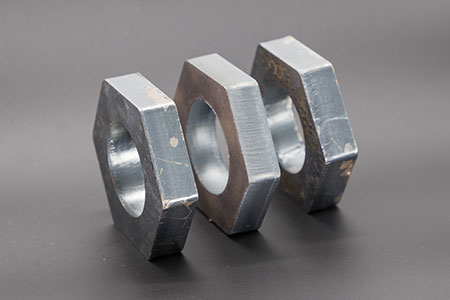

This fiber laser cutting machine can cut most metal materials, if you need to cut non-metal materials, please contact us.
DXTECH has more than 10 international quality certifications, ISO9001, EU CE certification, FDA certification, UL, CSA certification, COC, SGS, etc.
6KW 15mm Stainless Steel Laser Cutting Machine for Furniture Factory in Tajikistan
Exchange Platform Fiber Laser Cutting Machine for Steel, Iron advantages
1. With double platform, saving more than 50% of space and bring double production benefits.
2.Independent control cabinet
1) Dust proof: all electrical components and laser sources are built in an independent control cabinet to prevent dust pollution.
2) Automatic thermostat: equipped with an automatic constant temperature air conditioner, which can prevent the damage to the components due to the high temperature.
3.Thick-walled carbon steel pipe welding bed
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
4. World brand guides, racks and other components, make you no longer worry about the precision of cutting.
customer case

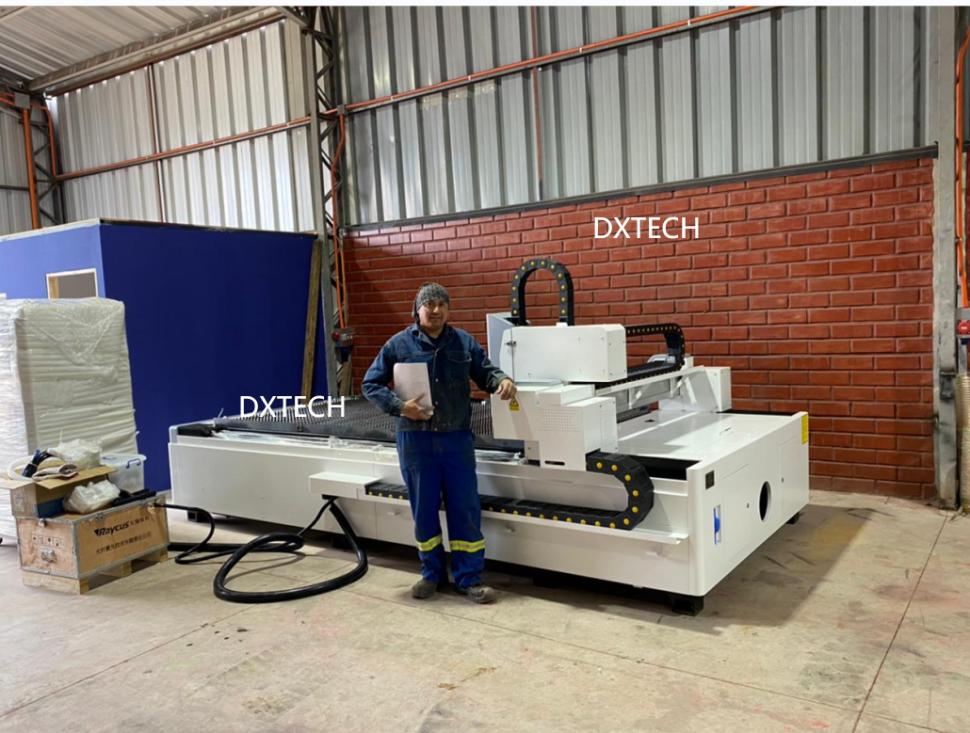

Tajikistan Customer:
“I am very grateful to have met DXTECH, and thank you for everything you have provided. At the beginning, I was very worried about importing machines, and I always felt that it was very troublesome. But DXTECH’s service and price are so good, it’s hard for me not to choose it. They provide the best factory price, and guarantee training installation and very good after-sales service. After receiving the goods, the installation of the machine was easier than I imagined. It took us about half a day to install it, and tried to cut it. It was great, no post-processing, and the cutting surface was very smooth. And because I upgraded the machine, I chose a machine with a switching platform, which is very efficient. I guess it will definitely improve my productivity after I put it into production. Thanks to DXTECH for recommending this machine that suits me. Looking forward to our next cooperation!”
machine configuration

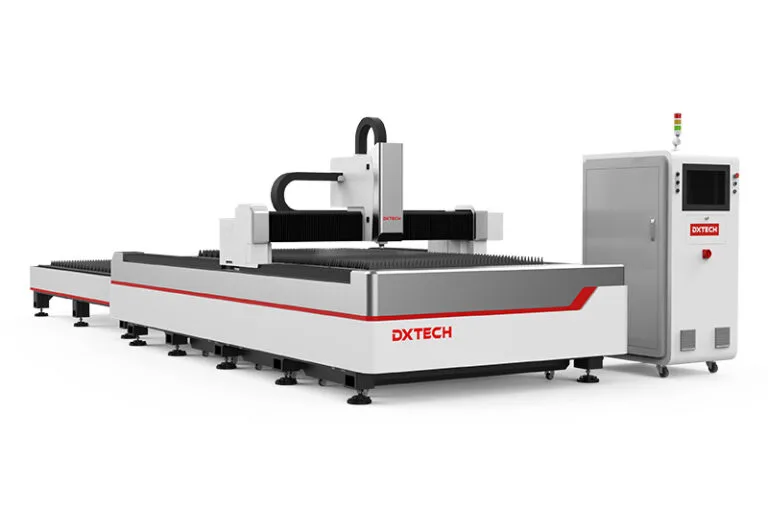

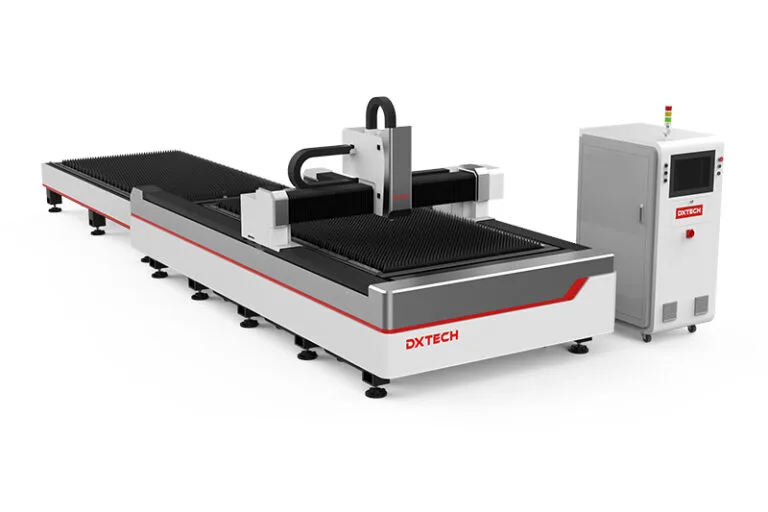

Automatic exchange of platform
Adopts the dual-platform automatic exchange system with the platform exchange time of 20-25s, which greatly improves work efficiency.
Thick-walled carbon steel plate welding bed
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Intelligent focusing laser head
Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Technical Parameters
| Model | DXTECH-1530EP | DXTECH-1540EP | DXTECH-1560EP | DXTECH-2040EP | DXTECH-2060EP |
| Working area (mm) | 1515*3030 | 1515*4040 | 1515*6050 | 2020*4040 | 2020*6060 |
| Worktable bearing capacity | 800kg | 950kg | 1300kg | 1300kg | 2000kg |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. exchange time | 18s | 21s | 21s | 22s | 35s |
| Max. acceleration | 1.5G | 1.5G | 1.5G | 1.5G | 1.5G |
| Laser power | 1kW – 6kW | 1kW – 6kW | 1kW – 6kW | 1kW – 6kW | 1kW – 6kW |
| Laser | Multiple options | Multiple options | Multiple options | Multiple options | Multiple options |
| Machine bed | tube welding bed/sheet welding bed | tube welding bed/sheet welding bed | tube welding bed/sheet welding bed | tube welding bed/sheet welding bed | tube welding bed/sheet welding bed |
| Max. running speed | 140m/min | 140m/min | 140m/min | 140m/min | 140m/min |
6KW 15mm Stainless Steel Laser Cutting Machine for Furniture Factory in Tajikistan
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
Application
Metal sheet laser cutting machines can cut a wide range of metals, even though highly reflective metals. For instance, carbon steel, stainless steel, aluminum, copper, brass, titanium, nickel, and various alloys. The sheet metal laser cutting machine has extensive applications in decoration, infrastructure, construction, microelectronic, advertising, kitchen appliance, automobile and other equipment manufacturing, and other industries.
6KW 15mm Stainless Steel Laser Cutting Machine for Furniture Factory in Tajikistan
