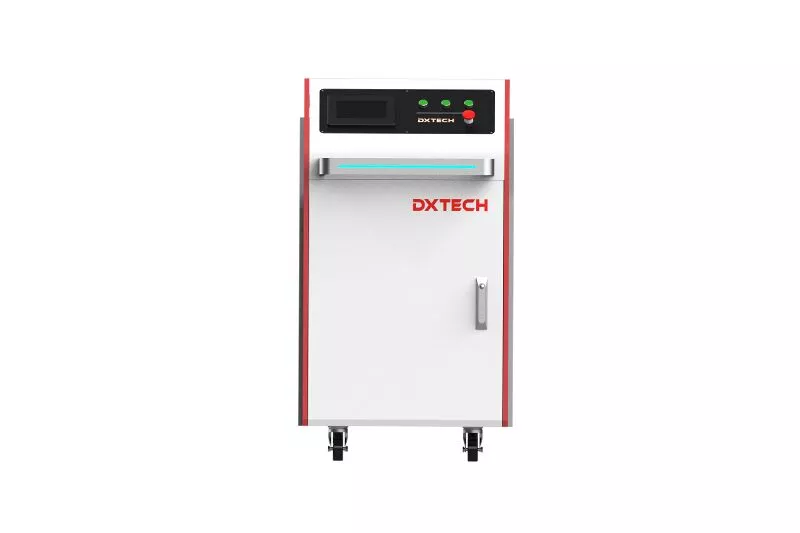

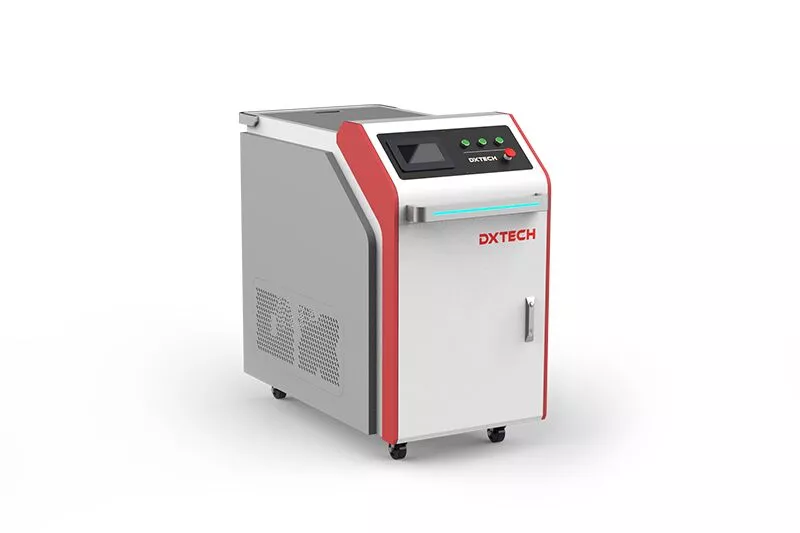

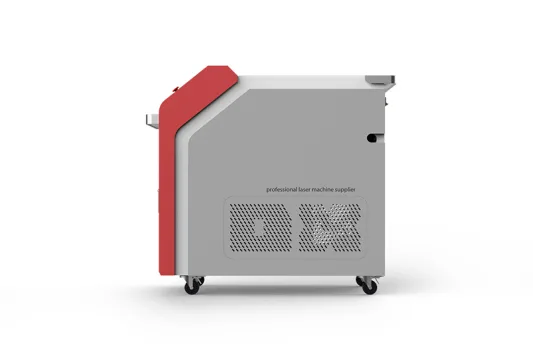

DXTECH “3-in-1” Handheld Laser Welding Machine Supplied in Dammam, Saudi Arabia
Price:
$6,100.00 /Set
Price Range :
$6,000.00 – $13,000.00
This “3-in-1” handheld laser welding machine supplied in Dammam, Saudi Arabia has three functions, which can perform laser welding, laser cleaning, and handheld metal cutting at the same time, ensuring perfect results in various applications without having to purchase multiple laser machines for these different laser processing operations. At the same time, the laser system is very suitable for welding stainless steel and aluminum alloys, and can also be welded on carbon steel, titanium alloys, etc. It can also be used for rust removal and handheld metal cutting.
LASER CNC MACHINES VIDEO
- Power: 1kw/2kw/3kw
- Welding Thinkness: 0.1-6mm (customized to 8mm)
- FAST: 120mm/s, up to 3~10X faster than TIG & MIG welding
- Optical fiber cable length: 10m/20m/30m.
- Configuration brand: Kylin OS, Raycus, Ruifa, Hanli
- The laser heat-affected zone is very small, with no deformation
DXTECH “3-in-1” Handheld Laser Welding Machine Supplied in Dammam, Saudi Arabia
Features
- Multifunctional fiber laser machine, which can weld, clean, and cut metal materials.

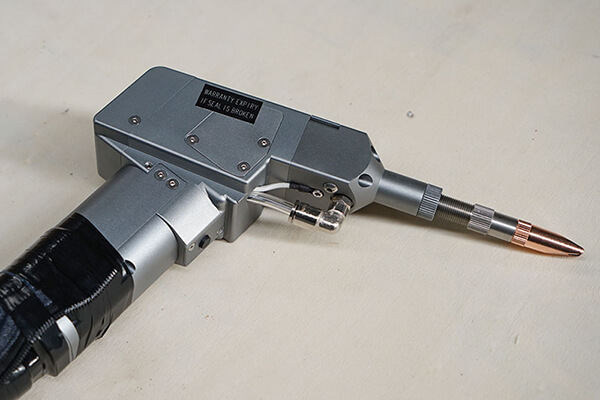

- Handheld operation mode, equipped with a special welding nozzle, can achieve welding of any part and any angle of the workpiece.
- Beautiful welds, no weld scars, no discoloration, and no subsequent grinding is required.
- The weld is firm, and the weld strength reaches or even exceeds the parent material itself.
- Suitable for welding, stack welding, internal and external corner welding, arc welding, irregular shape welding, etc.
- The proprietary laser safety operation protection function ensures the safety of operators during work.
- The operation is simple and easy to learn, the operator’s technical threshold is not high, and labor costs are saved.
DXTECH “3-in-1” Handheld Laser Welding Machine Supplied in Dammam, Saudi Arabia
other options
Professional handheld welding machine, suitable for customers with high requirements on welding technology
Technical Parameters
| Machine power | 1000w / 1500w / 2000w / 3000w |
| laser type | continuous |
| Laser source | Fiber laser |
| Cleaning width | 10-200mm |
| Laser wavelength | 1080±5nm |
| Pulse Width | 0.05-0.6 |
| Out power Stability | <2% |
| Weld thickness | 2-2.5mm/2-2.5mm/3-4mm/5-6mm |
| Power Consumption | 7KW / 8.2KW / 9.8KW / 13.9KW |
| Fiber optical length | 10m |
| Model | Regular / mini |
| Machine size | 700*1500*1300mm / 1500*750*850mm |
| machine weight | 240KGS / 160KGS |
DXTECH “3-in-1” Handheld Laser Welding Machine Supplied in Dammam, Saudi Arabia
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
Application

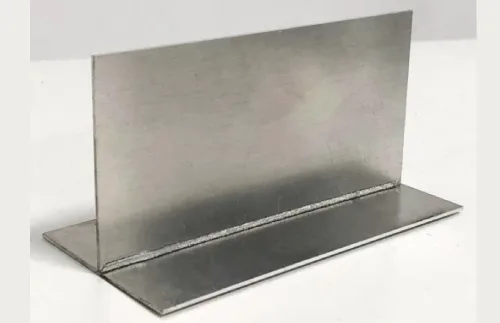

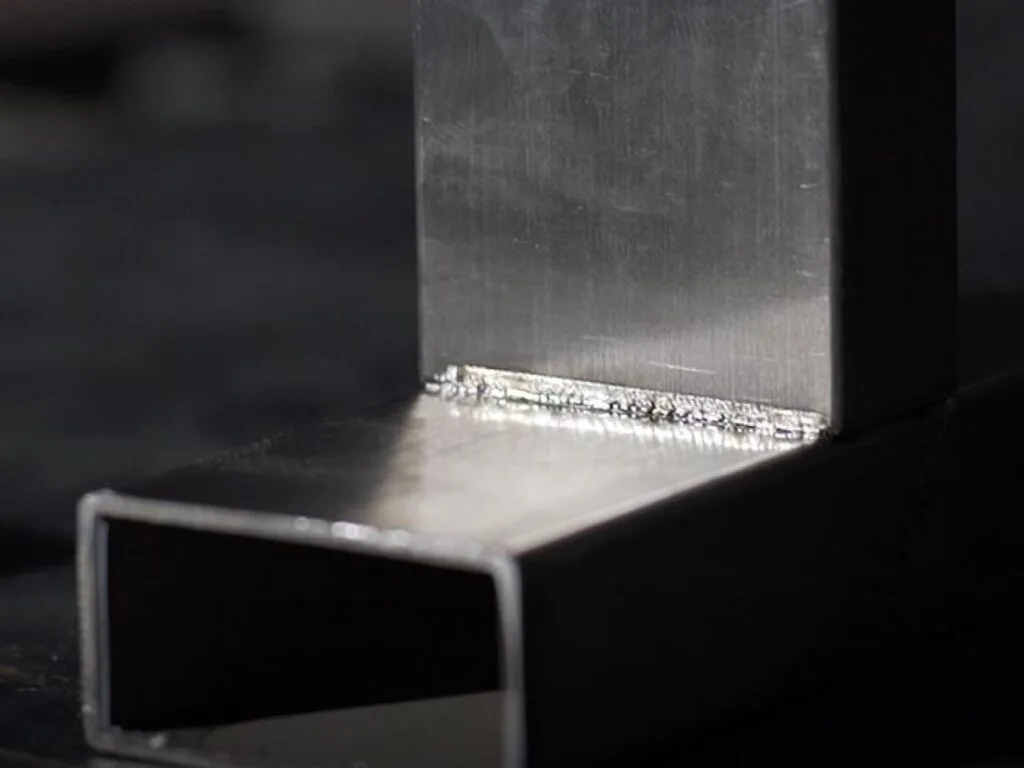

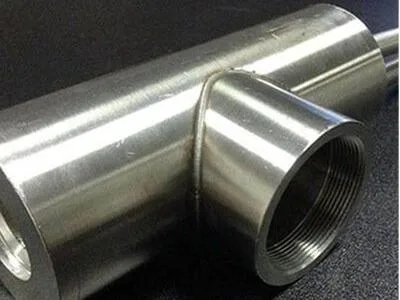

The “three-in-one” handheld laser welding machine is mainly used to complete the welding of thin stainless steel plates, iron plates, galvanized plates, and other metal materials, which can perfectly replace traditional argon arc welding, stainless steel plates, iron plates, aluminum plates, and other metal materials. It is used in kitchens and bathrooms, home appliances, advertising, molds, stainless steel products, stainless steel engineering, doors and windows, and other industries.
