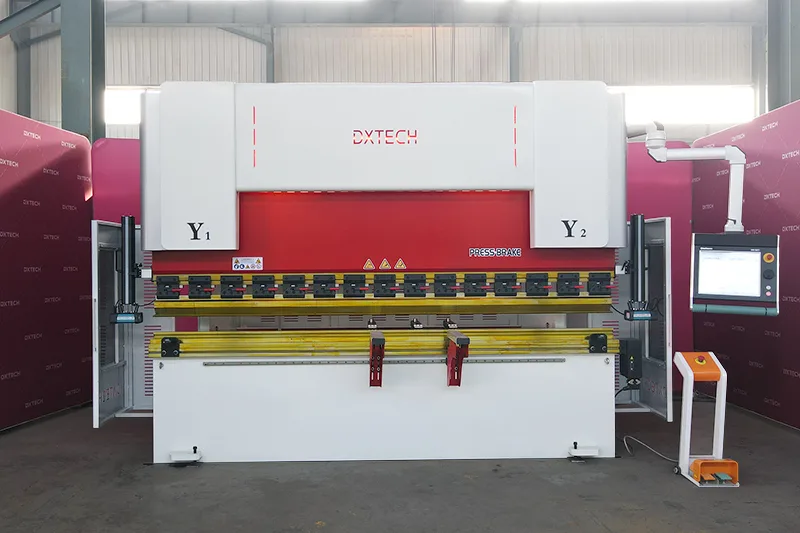

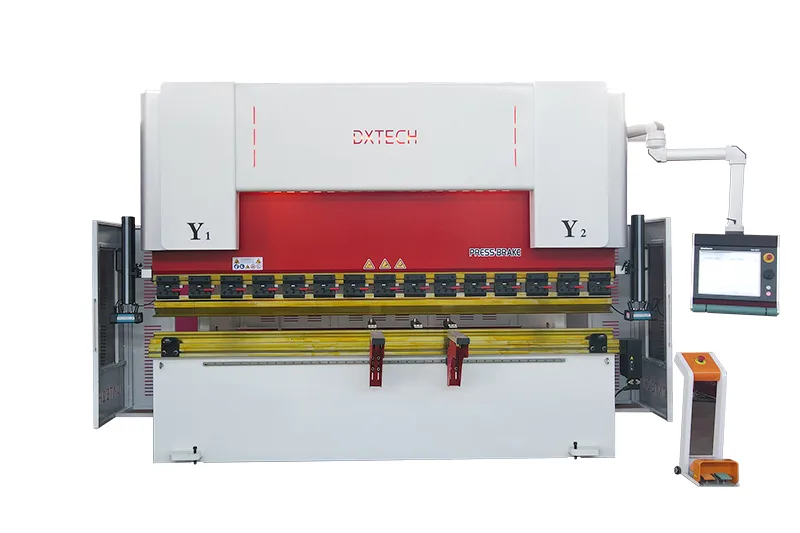

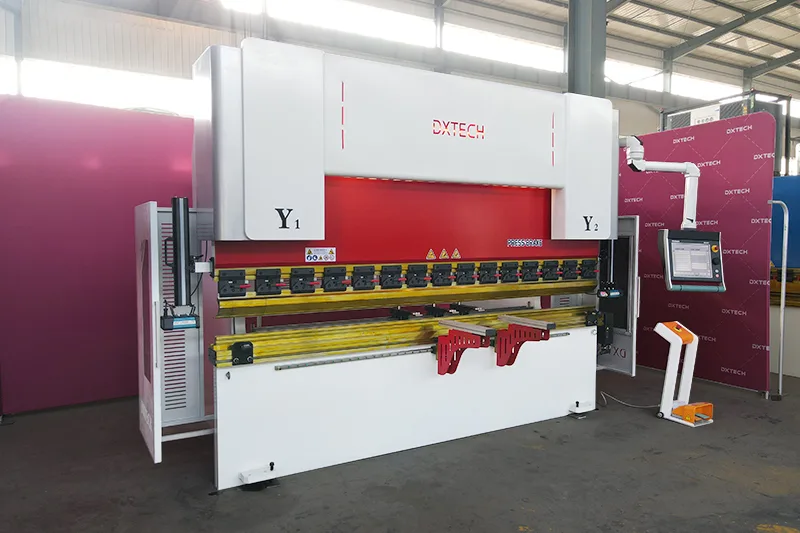

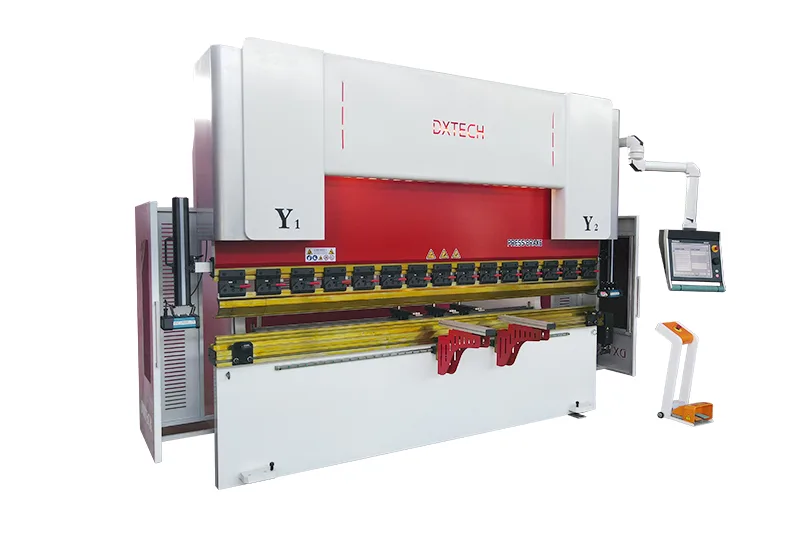

DX-PB-300T/3200 Servo Steel CNC Bending Machine Electro Hydraulic Press Brake for Sale in Hebron

Price:

$7,500.00 /Set

Price Range :

$7,500.00 – $13,000.00

The DX-PB-300T/3200 servo steel cnc bending machine electro hydraulic press brake is an important piece of equipment for metal plate bending processing. Users only need to choose the appropriate mold to easily shape the plate into various required shapes. The equipment ensures the synchronous operation of the oil cylinder through electro-hydraulic servo synchronization technology, significantly improves the synchronization performance, and enables it to maintain excellent stability when facing unbalanced loads. In addition, it adopts the Deleme DA-66T CNC system, combined with an all-steel welded structure and vibration aging technology, which effectively eliminates internal stress and gives the equipment excellent strength and rigidity.

Model: 300T/3200mm
CNC system: Delem DA-66T
Control accuracy: ±0.01mm
Nominal force: 3000kN
Table length: 3200m

Features

1. Two oil cylinders are cleverly placed on the left and right wall panels of the servo steel cnc bending machine electro hydraulic press brake to ensure that the whole machine is evenly stressed, rigid, and shows excellent stability.
2. Through advanced electro-hydraulic servo synchronization technology, the cylinder synchronization performance of this model is excellent, with strong anti-eccentric load capability, and the debugging process is simple and fast, which greatly improves work efficiency.
3. Equipped with the most optimized parameter ratio and core configuration, it ensures the stability of its performance and the convenience of operation. No matter what complex shape of the workpiece it faces, it can easily complete the bending task.
4. The built-in DA-66T CNC system makes the bending process more accurate and efficient. It simplifies the operation process and improves the automation level of the entire bending process.
5. Safety measures such as power supply safety protection design, light curtain protection, and door opening power-off function are all available to ensure the safety of operators during work.

Machine high-end configuration

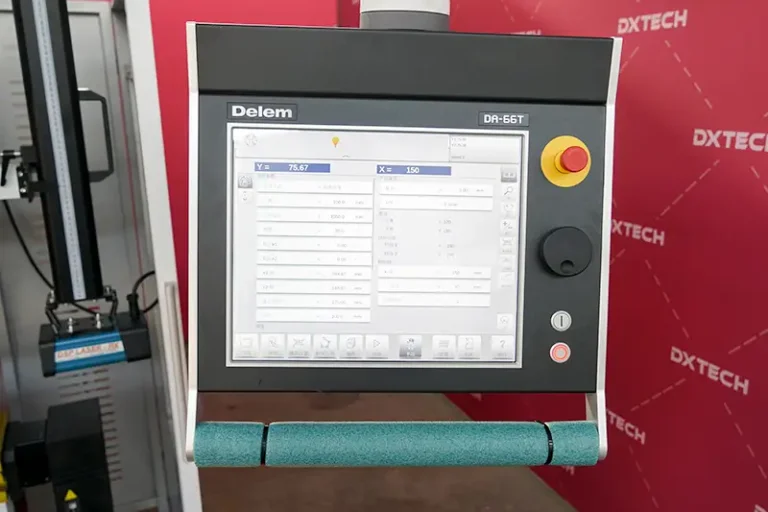

Netherlands Delem DA-66T CNC System

1) advanced performance, powerful. Adopting a real-time Windows operating system bundled with the core of the bending machine application, it is more convenient to operate and increases productivity.

2) Provide 2D product programming, automatic calculation of bending process, and collision detection functions. 3D all-round, multi-station mold real-time demonstration of the feasibility of bending operations on real machines.

3) Adopt more efficient algorithms to optimize the entire machine tool work, shorten the operation cycle, and improve the efficiency of the machine tool, and at the same time, it more convenient to adjust and control the machine tool.

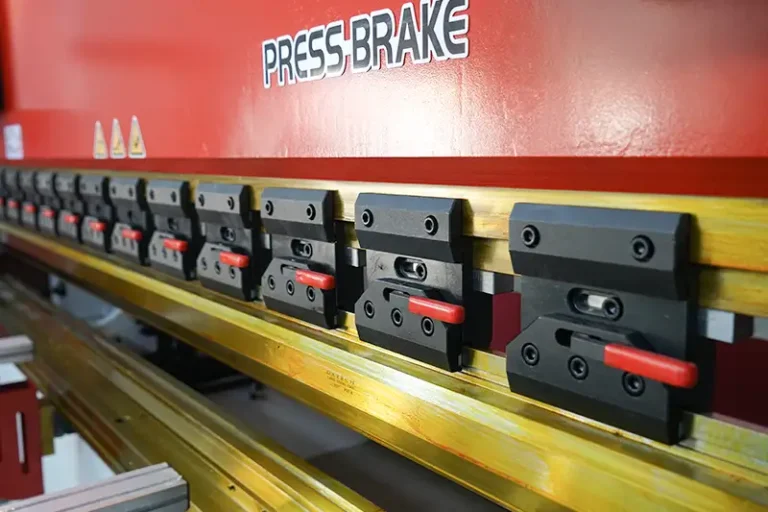

Die Clamping Device

1）The mold quick-clamping device is adopted, and the bending mold is made of 42CrMov material, which is quenched as a whole. High hardness and strong durability.

2）The standard double-V lower mold has grooves of different sizes and shapes for selection, which is convenient for mold replacement and can bend regular plates. It has a cost-effective CNC double-V mold workbench, which is convenient for the installation of segmented molds.

3）Ultra-low noise, using high-strength cast iron and a unique internal muffler design, making the noise even lower.

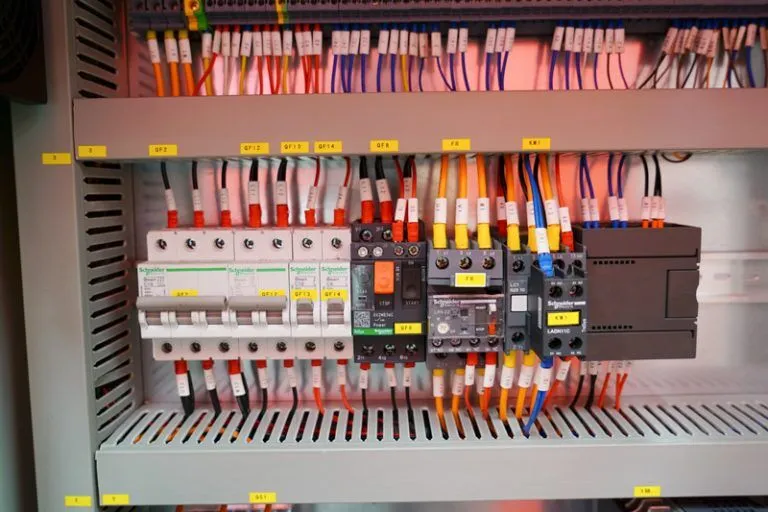

Electrical Parts

1) The equipment adopts Schneider components imported from France, which are famous for their stability, durability, and long service life.

2) The machine is equipped with Eston’s original self-adaptive electrical box assembly, which has strong anti-interference ability and stable electrical performance.

3) Compared with the traditional stepping motor, the precision of the servo motor is improved to ± 0.01 mm, the noise is reduced to 25 decibels, the energy consumption is reduced by 60%, the con oil pan has 70% less hydraulic oil, and the efficiency is 30% higher.

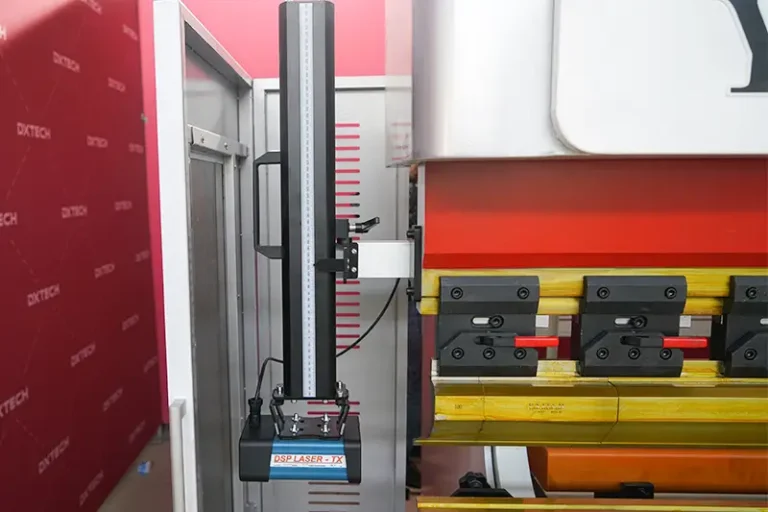

Automatic Compensation System

Calculates the compensation value based on the overall deformation of the ram and table, making the deformation curve of the bed seamlessly aligned with the compensation curve, ensuring the best straightness and angular consistency of the product.

Technical Parameters

Model	60T/2000	200T/3200	300T/3200mm
CNC System	Delem DA-66T	Delem DA-66T	Delem DA-66T
Nominal Force	600kN	2000kN	3000kN
Number Of Control Axes	6+1（Y1、Y2、X、R、Z1、Z2+V）	4+1（Y1、Y2、X、R +V）	3+1（Y1、Y2、X+V）
Table Length	2000mm	3200mm	3200mm
Distance Between Columns	1600mm	2600mm	2600mm
Throat Depth	360mm	400mm	410mm
Cylinder stroke	200mm	200mm	250mm
Opening Height	460mm	480mm	520mm
Oil Pump	5.5 KW	15KW	22KW
Main Motor Power	16F	32F	50F

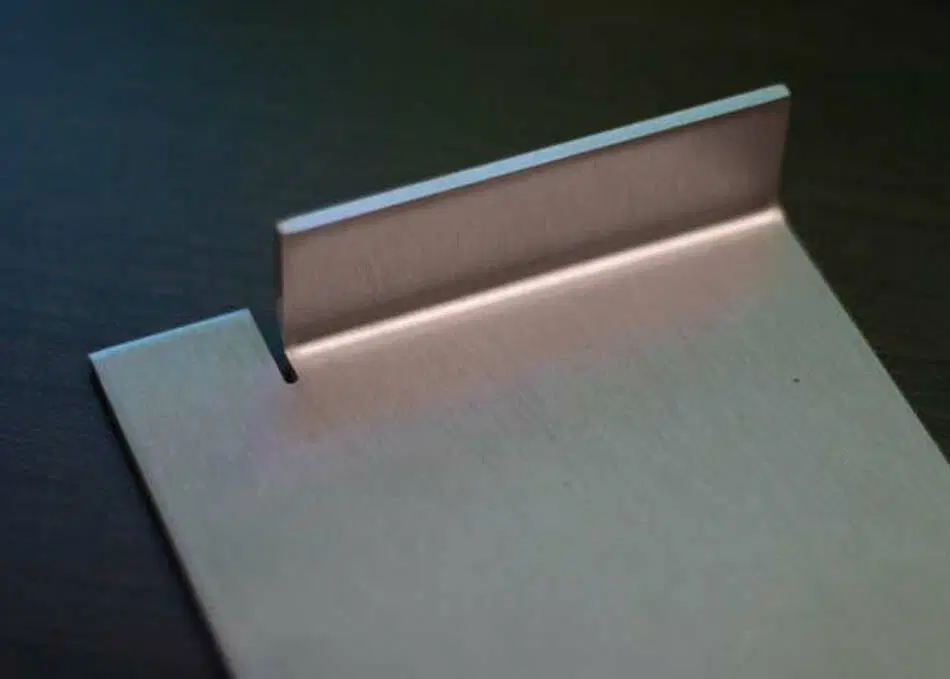

Application

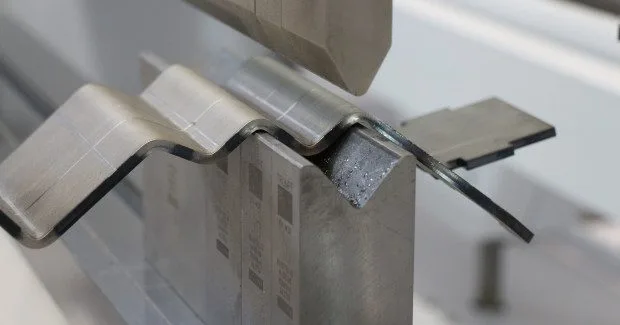

The servo steel cnc bending machine electro hydraulic press brake has strong processing capabilities and can flexibly process a variety of metal plates such as stainless steel, carbon steel, aluminum, etc. Its wide range of applications spans aviation, shipping, railways, highways, and other transportation industries, as well as mining, metallurgy, automobile manufacturing, home appliance production, construction machinery, engineering machinery, agricultural machinery, and other industrial branches.
