DX-PB-300T/3200 High Precision Electro Hydraulic Servo Press Brake Bending Machine for Sale in Antalya
Price:
$7,500.00 /Set
Price Range :
$7,500.00 – $13,000.00

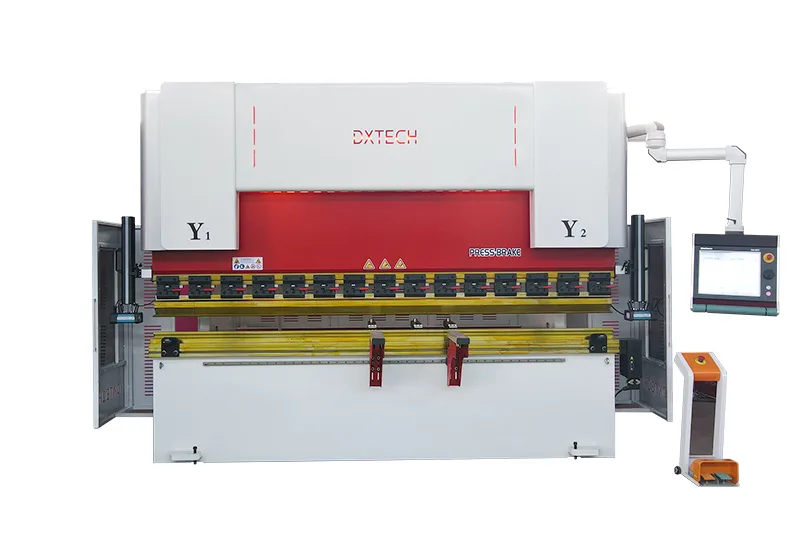

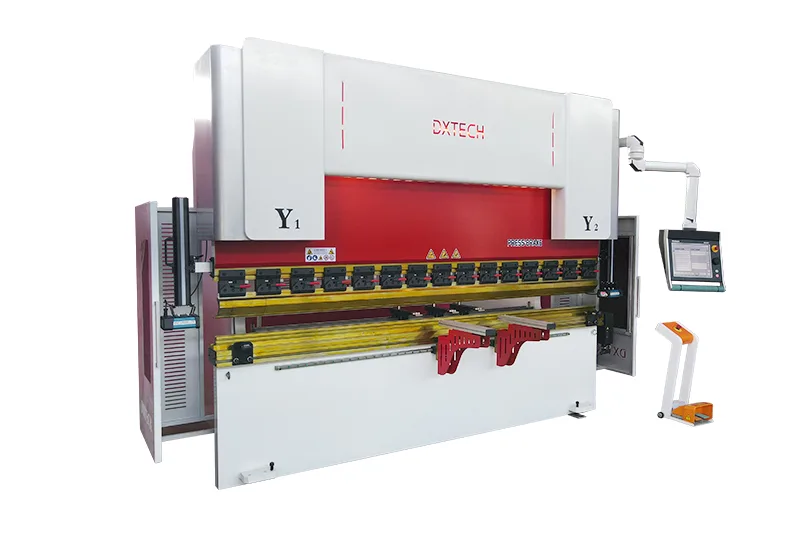

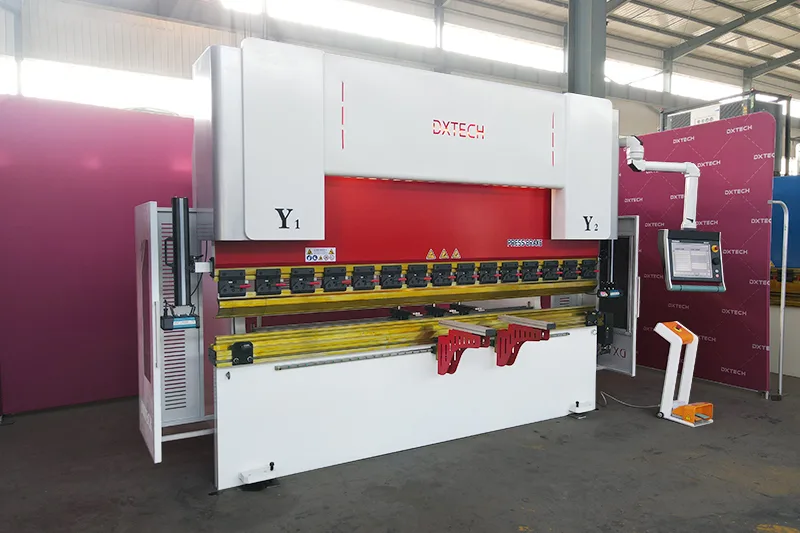

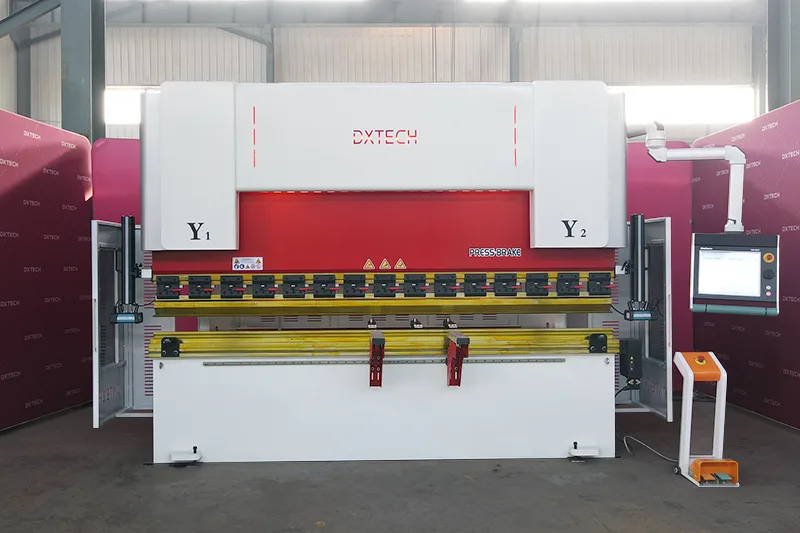

High precision electro hydraulic servo press brake bending machine is an important piece of equipment for metal plate bending processing. Users only need to choose the appropriate mold to easily shape the plate into various required shapes. The equipment ensures the synchronous operation of the oil cylinder through electro-hydraulic servo synchronization technology, significantly improves the synchronization performance, and enables it to maintain excellent stability when facing unbalanced loads. In addition, it adopts the Deleme DA-66T CNC system, combined with an all-steel welded structure and vibration aging technology, which effectively eliminates internal stress and gives the equipment excellent strength and rigidity.
- Model: 300T/3200mm
- CNC system: Delem DA-66T
- Control accuracy: ±0.01mm
- Table length: 3200m
LASER CNC MACHINES VIDEO
High precision electro hydraulic servo press brake bending machine is an important piece of equipment for sheet metal bending. The video shows the equipment’s Power: 300/3200mm; Quick clamping device; Motorized deflection compensation table; and Side blocks on the left and right sides.
FEATURES
1. Two oil cylinders are cleverly placed on the left and right wall panels of the high precision electro hydraulic servo press brake bending machine to ensure that the whole machine is evenly stressed, rigid, and shows excellent stability.
2. Through advanced electro-hydraulic servo synchronization technology, the cylinder synchronization performance of this model is excellent, with strong anti-eccentric load capability, and the debugging process is simple and fast, which greatly improves work efficiency.
3. Equipped with the most optimized parameter ratio and core configuration, it ensures the stability of its performance and the convenience of operation. No matter what complex shape of the workpiece it faces, it can easily complete the bending task.
4. The built-in DA-66T CNC system makes the bending process more accurate and efficient. It simplifies the operation process and improves the automation level of the entire bending process.
5. Safety measures such as power supply safety protection design, light curtain protection, and door opening power-off function are all available to ensure the safety of operators during work.
TECHNICAL PARAMETERS
| Model | 60T/2000mm | 200T/3200mm | 300T/3200mm |
| CNC System | Delem DA-66T | Delem DA-66T | Delem DA-66T |
| Nominal Force | 600kN | 2000kN | 3000kN |
| Number Of Control Axes | 6+1（Y1、Y2、X、R、Z1、Z2+V） | 4+1（Y1、Y2、X、R +V） | 3+1（Y1、Y2、X+V） |
| Table Length | 2000mm | 3200mm | 3200mm |
| Distance Between Columns | 1600mm | 2600mm | 2600mm |
| Throat Depth | 360mm | 400mm | 410mm |
| Cylinder stroke | 200mm | 200mm | 250mm |
| Opening Height | 460mm | 480mm | 520mm |
| Main Motor Power | 5.5 KW | 15KW | 22KW |
TECHNICAL ADVANTAGES

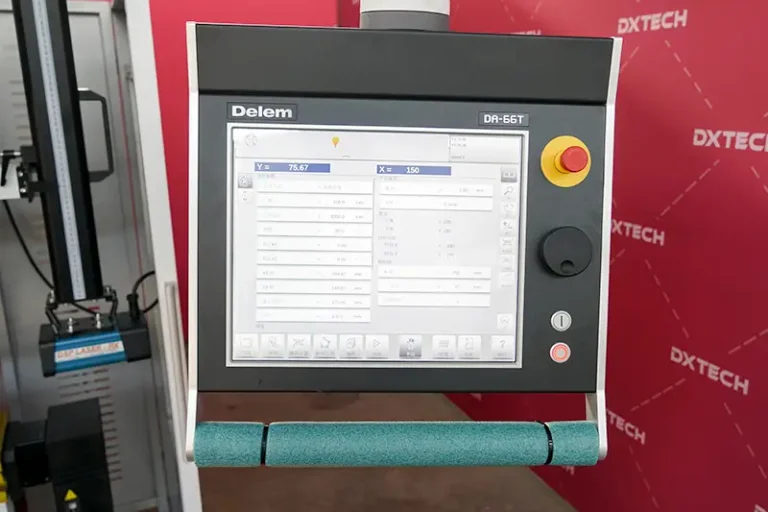

Netherlands Delem DA-66T CNC System
1) By integrating the real-time Windows operating system with the core application of the bending machine, the operation becomes more intuitive and convenient, thus significantly improving production efficiency.
2) It provides a variety of functions such as 2D product programming, automatic calculation of bending process and collision detection. Through the real-time demonstration function of 3D all-round and multi-station molds, users can intuitively evaluate the feasibility of real bending operations.
3) A more efficient algorithm is used to optimize the workflow of the entire machine tool. This not only shortens the operating cycle and improves the efficiency of the machine tool, but also makes the adjustment and control of the machine tool simpler and more convenient.

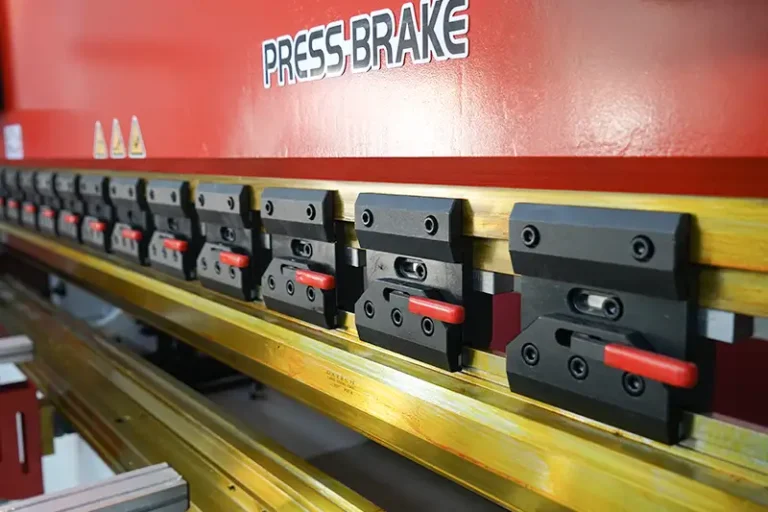

Die Clamping Device
1) Adopting efficient mold quick clamping device, the bending mold is made of 42CrMov material and quenched as a whole. It ensures the high hardness and excellent durability of the mold.
2) The standard double V lower mold is equipped with grooves of various sizes and shapes for you to choose flexibly, so that you can easily change the mold and bend regular plates to improve work efficiency.
3) The noise generated by the equipment during operation is extremely low, providing you with a quieter working environment.

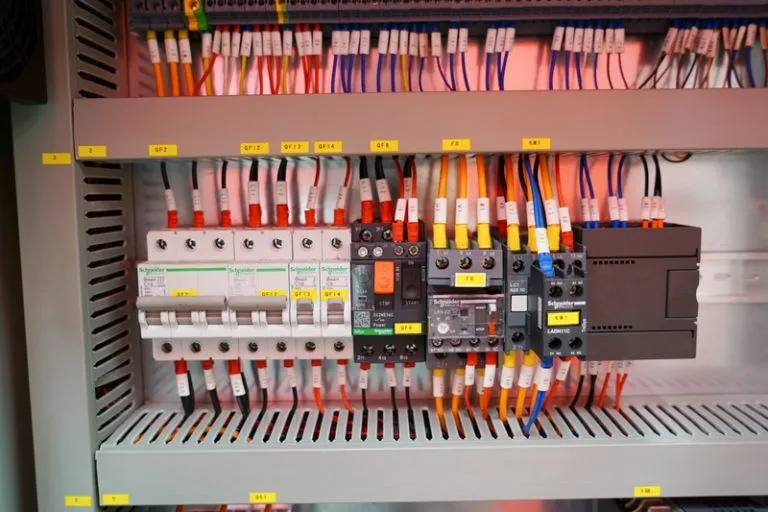

Electrical Parts
1) This machine specially uses Estun’s original adaptive electrical box components. This design significantly enhances the anti-interference ability of the equipment, ensures the stability of electrical performance, and brings users a more reliable operating experience.
2) Compared with traditional stepper motors, the servo motor equipped with this machine has shown significant advantages in many aspects. Its accuracy is as high as ±0.01mm, the noise is reduced to only 25 decibels, the energy consumption is reduced by 60%, and the amount of hydraulic oil in the oil pan is reduced by 70%, which makes the equipment more efficient during operation, with an efficiency increase of up to 30%.

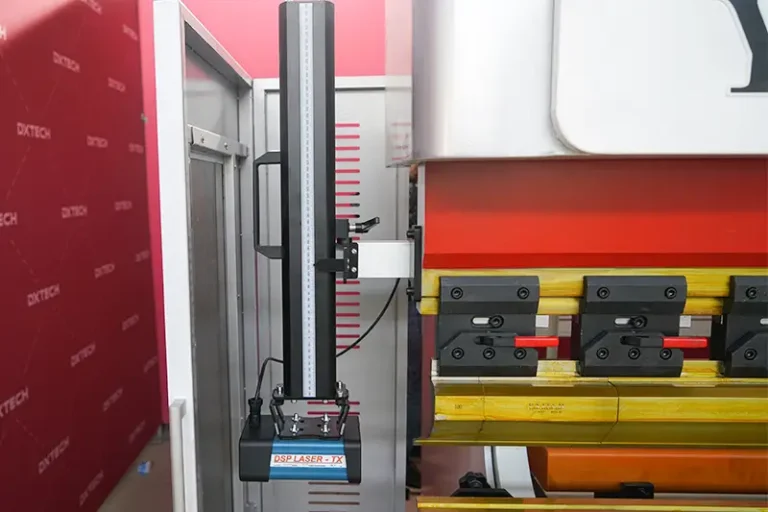

Automatic Compensation System
Calculates the compensation value based on the overall deformation of the ram and table, making the deformation curve of the bed seamlessly aligned with the compensation curve, ensuring the best straightness and angular consistency of the product.
global customer visit & feedback
Australia
DXTECH technicians arrived at the Australian customer's factory to assist in the installation and training of the F series fiber laser cutting machine.
Kazakhstan
Kazakhstan customers visited DXTECH's factory in China and witnessed the precision and reliability of our laser cutting and bending machines.
Türkiye
DXTECH technical team went to the customer's factory in Türkiye to provide customers with personalized machine commissioning and support.
South Africa
South African customers visited the DXTECH factory, spoke highly of the high efficiency and high precision of the laser cutting machine, and decided to cooperate.
Global after-sales Service
The DXTECH after-sales team traveled to Australia to debug the FP sheet metal laser cutting machine purchased by the customer.
Czech customers purchased SP full-coverage exchange table fiber laser cutting machine and spoke highly of DXTECH.
DXTECH after-sales team went to Bosnia and Herzegovina to help customers install and train the ST metal sheet and tube laser cutting machine.
WARRANTY & GUARANTEE
DXTECH Product Warranty Terms:
1. Warranty Period: DXTECH warrants its products and components to be free from defects in material or workmanship for two years after the original date of receipt.
2. Service During Warranty: Under normal use and maintenance, we will replace damaged parts free of charge (laser source is only repaired, not replaced).
3. Service Out of Warranty: Even outside the warranty period, you can still get spare parts at cost price. Our engineers will provide you with the best technical service within 24 hours.
Actively respond to customer needs
- Professional after-sales service team provides you with 24-hour multilingual online and offline services.
- Free installation guidance training, equipment maintenance.
- DXTECH can provide you with professional workshop planning and future equipment upgrade solutions.
APPLICATION
High precision electro hydraulic servo press brake bending machine has strong processing capabilities and can flexibly process a variety of metal plates such as stainless steel, carbon steel, aluminum, etc. Its wide range of applications spans aviation, shipping, railways, highways, and other transportation industries, as well as mining, metallurgy, automobile manufacturing, home appliance production, construction machinery, engineering machinery, agricultural machinery, and other industrial branches.
